Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
- QMPF30J515S

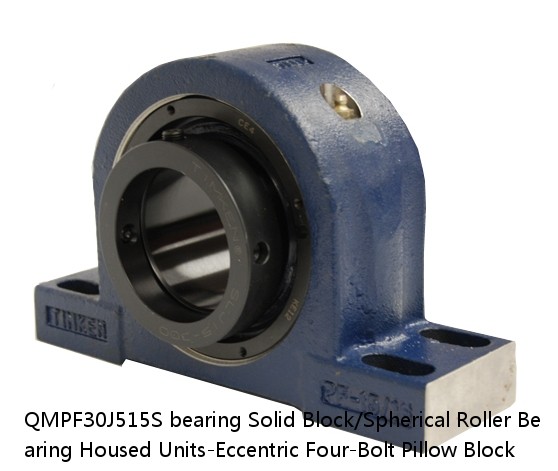

QMPF30J515S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
QMPF30J515S PDF download| Price： | enquiry |
| Model Number： | QMPF30J515S |
| Weight： | 3.10 |
| Bearing Number： | 2.08 |
| Housing Construction： | 250 lb113.4 Kg |
| UPC Code： | 0883450085922 0883450085939 0883450085953 0883450085960 0883450085977 0883450085984 0883450085991 08 |
| Shaft Size Type： | 0.0050 in0.127 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 23230 |
| Shaft Size | 5-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPF30J515SB QMPF30J515SC QMPF30J515SEB QMPF30J515SEC QMPF30J515SEM QMPF30J515SEN QMPF30J515SEO QMPF30J515SET QMPF30J515SM QMPF30J515SN QMPF30J515SO QMPF30J515ST |
| Locking Style | Eccentric |
| Weight | 250 lb113.4 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450085922 0883450085939 0883450085953 0883450085960 0883450085977 0883450085984 0883450085991 0883450086004 0883450155984 0883450156714 0883450250924 0883450251341 |
| Dimension A | 6.69 in169.9 mm |
| Dimension B | 13.000 in330.2 mm |
| Dimension C | 8.07 in205.0 mm |
| Dimension D Max | 19.13 in485.9 mm |
| Dimension D Min | 17.38 in441.5 mm |
| Dimension E | 3.75 in95.3 mm |
| Dimension F | 22.00 in558.8 mm |
| Dimension G | 6.7500 in171.50 mm |
| Dimension H | 3.00 in76.2 mm |
| Dimension J (Bolt Size) | 1.000 in24 mm |
| Dimension K | 2.99 in75.9 mm |
| Dimension L | 7.94 in201.7 mm |
| Dimension M | 4.57 in116.1 mm |
| Dimension R | 0.26 in6.6 mm |
| Dimension S | 7.560 in192.00 mm |
| C0 - Static Load | 372000 lb1660 kN |
| C - Dynamic Load (Basic) | 286000 lb1270 kN |
| e - Geometry Factor | 0.32 |
| Y1 - Geometry Factor | 2.08 |
| Y2 - Geometry Factor | 3.10 |
| Oil Lubrication - M/N Seal | 650 rpm |
| Oil Lubrication - T Seal | 950 rpm |
| Oil Lubrication - B/C/O Seal | 350 rpm |
| Grease Lubrication - M/N Seal | 600 rpm |
| Grease Lubrication - T Seal | 800 rpm |
| Grease Lubrication - B/C/O Seal | 350 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NUP210EM | Standard | 50 | 1.0 | 1.0 | 1.1 | 1.1 |
| ZKFCX08-22 | A-1/4-28UNF | ZKFCX08-22 | Medium-duty(X) | 1 3/8 | - | - |
| HMV/31 | M155x3 | 5 mm | 8100 mm² | 156 mm | 198 mm | 39.00 mm |
| B-138 | B-138 | 3.60 | 20.638 | 12.700 | - | 26.988 |
| LY550175ELN1K##---+(27.5) | LY55EL | 27.5 | - | - | - | - |
| NATV8LL/3AS | 8 | NATV8LL/3AS | 0.044 | 8500 | 12.0 | 19 |
| QVVFL22V312S | 3.80 | 2.55 | 55 lb24.90 Kg | 0883450092364 0883450092456 0883450105637 0883450105767 0883450111928 0883450112055 0883450122498 08 | 0.0030 in0.076 mm | 3-3/4 in |
| MCM05060H10K00 | MCM05060H10K00 | 600 | 10 | - | - | - |
| 30319DU | 49.50 | 95 | 3.0 | 4.0 | 30319DU | 6.47 |
| LRB 202420 | 31.75 | 37.0 | 37.1 | 31.75 | LRB 202420 | 86.0 |
