Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
- QMPF20J400S

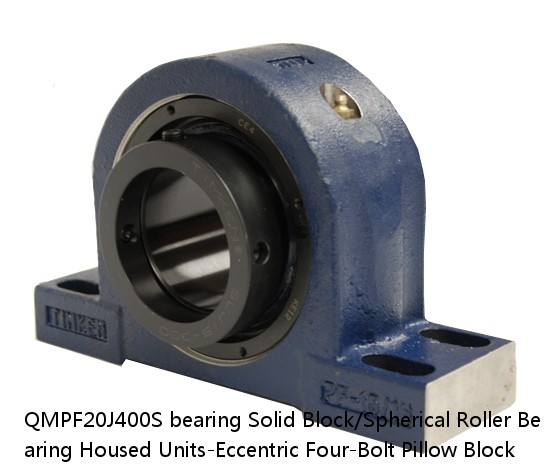

QMPF20J400S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
QMPF20J400S PDF download| Price： | enquiry |
| Model Number： | QMPF20J400S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 67 lb30.400 Kg |
| UPC Code： | 0883450085120 0883450085137 0883450085151 0883450085168 0883450085175 0883450085182 0883450085199 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPF20J400SB QMPF20J400SC QMPF20J400SEB QMPF20J400SEC QMPF20J400SEM QMPF20J400SEN QMPF20J400SEO QMPF20J400SET QMPF20J400SM QMPF20J400SN QMPF20J400SO QMPF20J400ST |
| Locking Style | Eccentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450085120 0883450085137 0883450085151 0883450085168 0883450085175 0883450085182 0883450085199 0883450085205 0883450155854 0883450156585 0883450250795 0883450251211 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension R | 0.36 in9.1 mm |
| Dimension S | 4.590 in116.60 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 6316/C3 | 3.60 Kg | 2.100 mm | 39.000 mm | 170.000 mm | 7500 rpm | 5200 rpm |
| GEZH 312 ES | 2650.000 | 900.000 | 9.000 | 95.250 | 158.7500 | 300 |
| 232/560KYMBW507AC08 | 1.91 | 2.91 | 1.96 | 220 | 210 | 7.000 mm0.280 in |
| 23130AXK | 150 | 2.1 | 16.70 | 2800 | 2100 | 250 |
| SBPF205-14J | Normal-duty(2) | SBPF205-14J | Standard | 7/8 | - | - |
| BNF3204-7.5RRG1+80LC0 | 80.000 | BNF3204-7.5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| NNU4988MAW33 | 160.000 mm6.2992 in | 300.000 lb | 460 rpm | 420 rpm | 5740 kN1292000 lbf | 600.000 mm23.6220 in |
| 6314NR | 70 | 2.1 | 2.520 | 4600 | 150 | 104000 |
| 7922CDT FY | 110 | 0.6 | 1.1 | 6800 | 5100 | 7922CDTFY |
| UCT211/34 | 8.8 lb4 Kg | 087796139657 | 171.00 mm6.732 in | 146.00 mm5.748 in | 6609 lbf29400 N | 38.00 mm1.496 in |
