Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
- QMPF15J300S

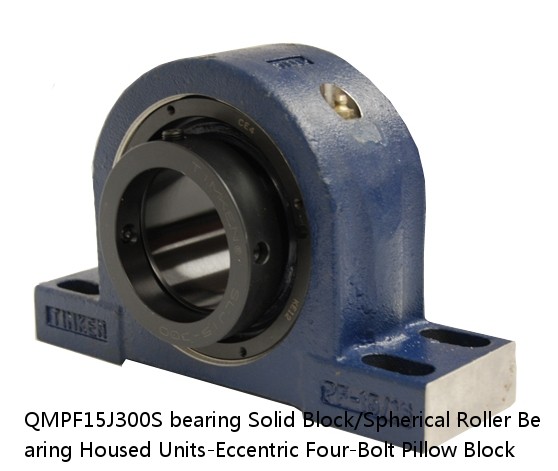

QMPF15J300S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
QMPF15J300S PDF download| Price： | enquiry |
| Model Number： | QMPF15J300S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 27 lb12.2 Kg |
| UPC Code： | 0883450084024 0883450084031 0883450084055 0883450084062 0883450084079 0883450084086 0883450084093 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPF15J300SB QMPF15J300SC QMPF15J300SEB QMPF15J300SEC QMPF15J300SEM QMPF15J300SEN QMPF15J300SEO QMPF15J300SET QMPF15J300SM QMPF15J300SMNP QMPF15J300SN QMPF15J300SO QMPF15J300ST |
| Locking Style | Eccentric |
| Weight | 27 lb12.2 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450084024 0883450084031 0883450084055 0883450084062 0883450084079 0883450084086 0883450084093 0883450084109 0883450155731 0883450156462 0883450250672 0883450251099 0883450952804 |
| Dimension A | 3.25 in82.6 mm |
| Dimension B | 6.60 in167.6 mm |
| Dimension C | 4.01 in101.9 mm |
| Dimension D Max | 9.10 in231.1 mm |
| Dimension D Min | 7.60 in193.0 mm |
| Dimension E | 1.88 in47.8 mm |
| Dimension F | 10.44 in265.2 mm |
| Dimension G | 3.130 in79.50 mm |
| Dimension H | 1.29 in32.8 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension K | 1.25 in31.8 mm |
| Dimension L | 3.93 in99.8 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension R | 0.24 in6.1 mm |
| Dimension S | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
