Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF20K308S

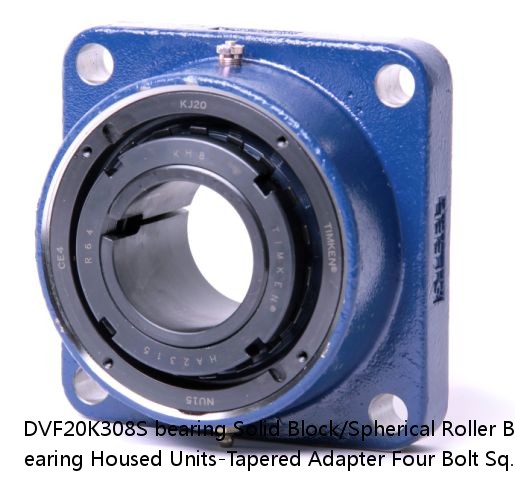

DVF20K308S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF20K308S PDF download| Price： | enquiry |
| Model Number： | DVF20K308S |
| Weight： | 3.80 |
| Bearing Number： | 2.55 |
| Housing Construction： | 39.0 lb17.7 Kg |
| UPC Code： | 0.0040 in0.102 mm |
| Shaft Size Type： | 3-1/2 in |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | DVF20K308SB DVF20K308SC DVF20K308SEB DVF20K308SEC DVF20K308SEM DVF20K308SEN DVF20K308SEO DVF20K308SET DVF20K308SM DVF20K308SN DVF20K308SO DVF20K308ST |
| Locking Style | Tapered Adapter |
| Weight | 39.0 lb17.7 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450006927 0883450006934 0883450006958 0883450006965 0883450006972 0883450006989 0883450006996 0883450007009 0883450196567 0883450196765 0883450274074 0883450274272 |
| Dimension BC | 9.9 in251.5 mm |
| Dimension C | 5.12 in130 mm |
| Dimension D | 7.630 in193.80 mm |
| Dimension E | 7.000 in177.8 mm |
| Dimension F | 8.63 in219.2 mm |
| Dimension H | 1.31 in33.3 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L | 3.97 in100.9 mm |
| Dimension M | 2.3 in58.4 mm |
| Dimension N | 3.310 in84.1 mm |
| Dimension S | 3.82 in97 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.55 |
| Y2 - Geometry Factor | 3.80 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| Int Radial Clearance Reduction Min | 0.0018 in0.046 mm |
| Int Radial Clearance Reduction Max | 0.0025 in0.064 mm |
| Adapter Sleeve Axial Movement Min | 0.027 in0.7 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NJ320ET | Standard | 100 | 2.5 | 2.5 | 3.0 | 3.0 |
| ECB 510 | 0.030 | ECB 510 | 98.000 | 101.000 | 84.200 | 40.000 |
| MCH06005H10K | MCH06005H10K | 50 | 10 | - | - | - |
| SNP/3176 x 14 | -0.007 in | 1:12 | S-3176 x 14 | 231K | 2.041 in | P-76 |
| BNF6320-5RRG1+207LC0 | 207.000 | BNF6320-5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| NH650193ANN1PCZ1AL+(21.5) | NH65AN | 21.5 | - | - | - | - |
| NA4940 | 2.10 | NA4940 | 12.2 | 1800 | 1200 | 280 |
| 280RYL1783 | 220.000 mm8.6614 in | 220.000 mm8.6614 in | 180.200 lb | RY-6 | 2620 kN590000 lbf | 312RYSL1783 |
| QVPR14V208S | 4.32 | 2.90 | 20 lb9.10 Kg | 0883450059510 0883450059541 0883450114073 0883450114110 0883450175487 0883450204354 0883450204675 08 | 0.0015 in0.038 mm | 2-1/2 in |
| 7326CDF FY | 130 | 1.5 | 4.0 | 4000 | 3000 | 7326CDFFY |
