Double V-Lock Solid-Block Housed Units

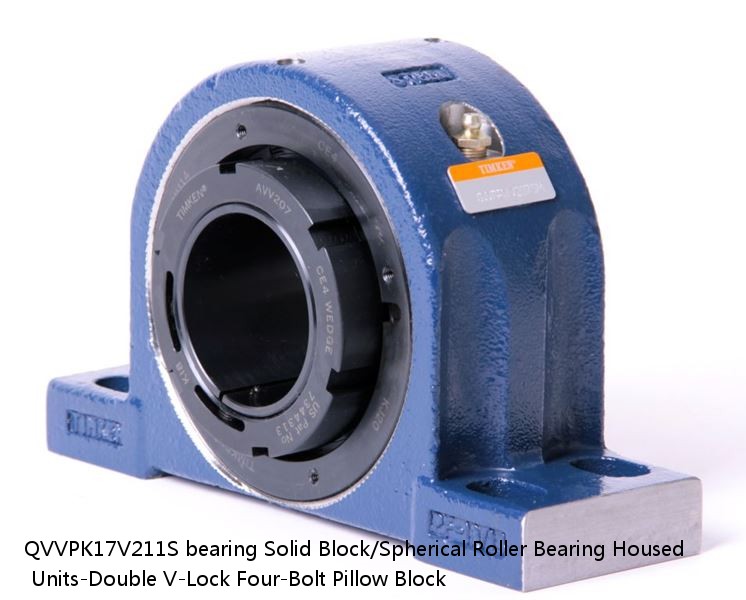

QVVPK17V211S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four-Bolt Pillow Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVPK17V211S
Weight：	4.57
Bearing Number：	3.07
Housing Construction：	37.0 lb16.8 Kg
UPC Code：	0883450149433 0883450149587 0883450153881 0883450153973 0883450176972 0883450177061 0883450187008 08
Shaft Size Type：	0.0020 in0.051 mm

Engineering Group	Mounted Bearing
Bearing Number	22217
Shaft Size	2-11/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVPK17V211SB QVVPK17V211SC QVVPK17V211SEB QVVPK17V211SEC QVVPK17V211SEM QVVPK17V211SEN QVVPK17V211SEO QVVPK17V211SET QVVPK17V211SM QVVPK17V211SN QVVPK17V211SO QVVPK17V211ST
Locking Style	Double V-Lock
Weight	37.0 lb16.8 Kg
Housing Construction	Four-Bolt Pillow Block
UPC Code	0883450149433 0883450149587 0883450153881 0883450153973 0883450176972 0883450177061 0883450187008 0883450187176 0883450279635 0883450279727 0883450283830 0883450283922
Dimension A	4.00 in101.6 mm
Dimension B	7.92 in201.2 mm
Dimension C	4.19 in106.4 mm
Dimension D Max	12.19 in309.6 mm
Dimension D Min	10.81 in274.6 mm
Dimension E	3.00 in76.2 mm
Dimension F	15.000 in381.00 mm
Dimension G	4.7500 in120.70 mm
Dimension H	1.50 in38.1 mm
Dimension L	4.47 in113.5 mm
Dimension RVV	0.34 in8.6 mm
Dimension SVV	4.18 in106.2 mm
C - Dynamic Load (Basic)	66900 lb297 kN
C0 - Static Load	71900 lb320 kN
e - Geometry Factor	0.22
Y1 - Geometry Factor	3.07
Y2 - Geometry Factor	4.57
Oil Lubrication - M/N Seal	1400 rpm
Oil Lubrication - T Seal	2400 rpm
Oil Lubrication - B/C/O Seal	1100 rpm
Grease Lubrication - M/N Seal	1400 rpm
Grease Lubrication - T Seal	2000 rpm
Grease Lubrication - B/C/O Seal	1100 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0020 in0.051 mm
Eng Internal Radial Clearance - Min	0.0037
Eng Internal Radial Clearance - Max	0.0047
Pre Install Clearance Min	0.0037 in0.095 mm
Pre Install Clearance Max	0.0047 in0.120 mm
