Double V-Lock Solid-Block Housed Units

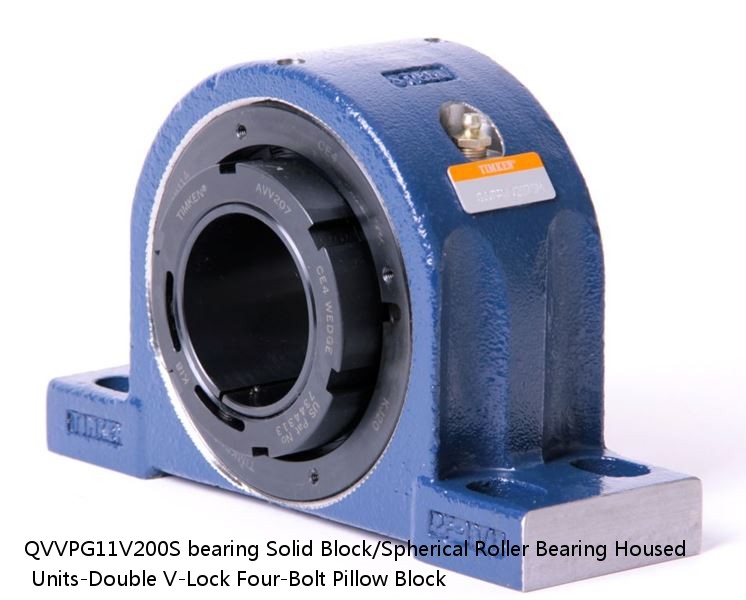

QVVPG11V200S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four-Bolt Pillow Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVPG11V200S
Weight：	4.40
Bearing Number：	2.95
Housing Construction：	19 lb8.6 Kg
UPC Code：	0883450147637 0883450147866 0883450152709 0883450152853 0883450175012 0883450175166 0883450183918 08
Shaft Size Type：	0.0015 in0.038 mm

Engineering Group	Mounted Bearing
Bearing Number	22211
Shaft Size	2 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVPG11V200SB QVVPG11V200SC QVVPG11V200SEB QVVPG11V200SEC QVVPG11V200SEM QVVPG11V200SEN QVVPG11V200SEO QVVPG11V200SET QVVPG11V200SM QVVPG11V200SN QVVPG11V200SO QVVPG11V200ST
Locking Style	Double V-Lock
Weight	19 lb8.6 Kg
Housing Construction	Four-Bolt Pillow Block
UPC Code	0883450147637 0883450147866 0883450152709 0883450152853 0883450175012 0883450175166 0883450183918 0883450184908 0883450265041 0883450276535 0883450282666 0883450282819
Dimension A	2.75 in69.9 mm
Dimension B	5.31 in134.9 mm
Dimension C	2.99 in75.9 mm
Dimension D Max	8.56 in217.4 mm
Dimension D Min	7.18 in182.4 mm
Dimension E	1.57 in39.9 mm
Dimension F	9.88 in251.0 mm
Dimension G	2.700 in68.60 mm
Dimension H	1.25 in31.8 mm
Dimension J (Bolt Size)	0.625 in16 mm
Dimension L	3.36 in85.3 mm
Dimension RVV	0.82 in20.8 mm
Dimension SVV	4.02 in102.1 mm
C - Dynamic Load (Basic)	31400 lb140 kN
C0 - Static Load	31900 lb142 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.95
Y2 - Geometry Factor	4.40
Oil Lubrication - M/N Seal	2200 rpm
Oil Lubrication - T Seal	3800 rpm
Oil Lubrication - B/C/O Seal	1800 rpm
Grease Lubrication - M/N Seal	2200 rpm
Grease Lubrication - T Seal	3200 rpm
Grease Lubrication - B/C/O Seal	1600 rpm
Float	0.050 in1.270 mm
Shaft Tolerance	0.0015 in0.038 mm
Eng Internal Radial Clearance - Min	0.0030
Eng Internal Radial Clearance - Max	0.0037
Pre Install Clearance Min	0.0030 in0.076 mm
Pre Install Clearance Max	0.0037 in0.094 mm
