Double V-Lock Solid-Block Housed Units

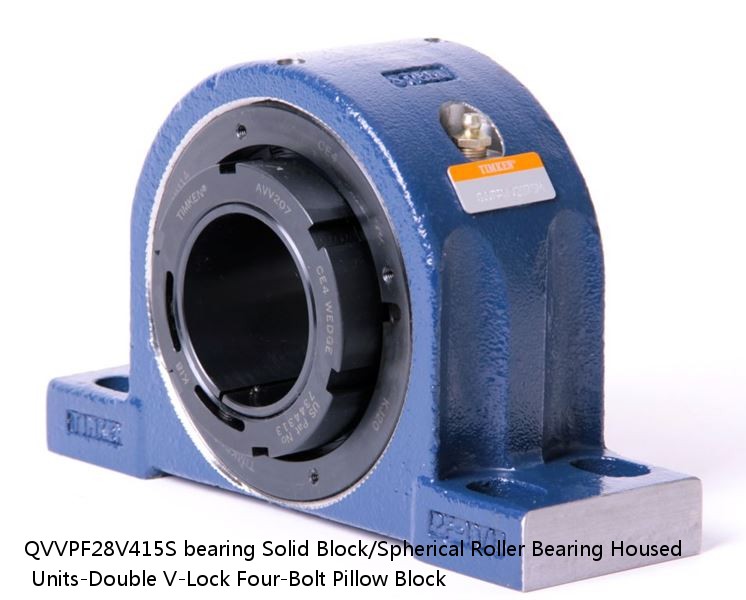

QVVPF28V415S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four-Bolt Pillow Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVPF28V415S
Weight：	3.98
Bearing Number：	2.67
Housing Construction：	134 lb60.8 Kg
UPC Code：	0883450089012 0883450089340 0883450100359 0883450100724 0883450108607 0883450108706 0883450116121 08
Shaft Size Type：	0.0050 in0.127 mm

Engineering Group	Mounted Bearing
Bearing Number	22228
Shaft Size	4-15/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVPF28V415SB QVVPF28V415SC QVVPF28V415SEB QVVPF28V415SEC QVVPF28V415SEM QVVPF28V415SEN QVVPF28V415SEO QVVPF28V415SET QVVPF28V415SETHT QVVPF28V415SM QVVPF28V415SN QVVPF28V415SO QVVPF28V415ST QVVPF28V4
Locking Style	Double V-Lock
Weight	134 lb60.8 Kg
Housing Construction	Four-Bolt Pillow Block
UPC Code	0883450089012 0883450089340 0883450100359 0883450100724 0883450108607 0883450108706 0883450116121 0883450116190 0883450130776 0883450130844 0883450139267 0883450139335 0883450511094 0883450511100
Dimension A	5.50 in139.7 mm
Dimension B	11.01 in279.7 mm
Dimension C	7.48 in190.0 mm
Dimension D Max	15.88 in403.4 mm
Dimension D Min	13.75 in349.3 mm
Dimension E	2.75 in69.9 mm
Dimension F	17.50 in444.5 mm
Dimension G	5.040 in128.00 mm
Dimension H	1.54 in39.1 mm
Dimension J (Bolt Size)	0.875 in24 mm
Dimension L	6.03 in153.2 mm
Dimension RVV	1.24 in31.5 mm
Dimension SVV	7.02 in178.3 mm
C - Dynamic Load (Basic)	194000 lb863 kN
C0 - Static Load	237000 lb1060 kN
e - Geometry Factor	0.25
Y1 - Geometry Factor	2.67
Y2 - Geometry Factor	3.98
Oil Lubrication - M/N Seal	650 rpm
Oil Lubrication - T Seal	1200 rpm
Oil Lubrication - B/C/O Seal	350 rpm
Grease Lubrication - M/N Seal	650 rpm
Grease Lubrication - T Seal	900 rpm
Grease Lubrication - B/C/O Seal	350 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0050 in0.127 mm
Eng Internal Radial Clearance - Min	0.0063
Eng Internal Radial Clearance - Max	0.0079
Pre Install Clearance Min	0.0063 in0.160 mm
Pre Install Clearance Max	0.0079 in0.201 mm
