Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
- QVVPL19V307S

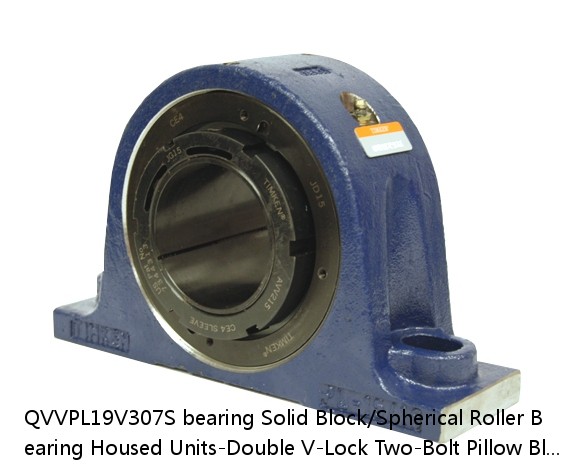

QVVPL19V307S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
QVVPL19V307S PDF download| Price： | enquiry |
| Model Number： | QVVPL19V307S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 45 lb20.40 Kg |
| UPC Code： | 0883450172363 0883450172554 0883450172745 0883450173124 0883450173315 0883450173506 0883450203135 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 3-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVPL19V307SB QVVPL19V307SC QVVPL19V307SEB QVVPL19V307SEC QVVPL19V307SEM QVVPL19V307SEN QVVPL19V307SEO QVVPL19V307SET QVVPL19V307SM QVVPL19V307SN QVVPL19V307SO QVVPL19V307ST |
| Locking Style | Double V-Lock |
| Weight | 45 lb20.40 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450172363 0883450172554 0883450172745 0883450173124 0883450173315 0883450173506 0883450203135 0883450203517 0883450215558 0883450215930 0883450227971 0883450228350 |
| Dimension A | 3.75 in95.3 mm |
| Dimension B | 7.69 in195.3 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D Max | 10.75 in273.1 mm |
| Dimension D Min | 9.25 in235.0 mm |
| Dimension F | 13.000 in330.20 mm |
| Dimension G | 3.410 in86.60 mm |
| Dimension H | 1.88 in47.8 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 4.02 in102.1 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension SVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| AOH 3280 G | HM 3184 | HMV 84 E | AOH 3280 G | 380.000 | 400.000 | 312.000 |
| SR 150x12.5 20 | - | - | - | - | - | - |
| 6216/NR | 1.4 Kg | 2.000 mm | 26.000 mm | 140.000 mm | 7500 rpm | 5200 rpm |
| SAK 1 1/8 | 2.513 lb1.14 Kg | 1.563 in39.7 mm | 157.2 mm6.189 in | 80.2 mm3.157 in | 2530 lbf11300 N | 1 1/8 in28.6 mm |
| FJP-36 | 465 | FJP-36 | 0.9 | 100000 | 3 | 6.5 |
| UCFB210-31J | A-1/4-28UNF | UCFB210-31J | 1 15/16 | Normal-duty(2) | - | - |
| 23184R | 6.0 | 23184R | 470 | 350 | 700 | 583 |
| TLAM 1712 | 17 | TLAM 1712 | 13.00 | 17 | 23 | 7960 |
| 7000DB | 10 | 0.15 | 0.3 | 7000 | 0.020 | 39 000 |
| BLR2525-3.6UU+85LC7 | 85.000 | BLR2525-3.6 | - | - | - | - |
