Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
- QASN15A075S

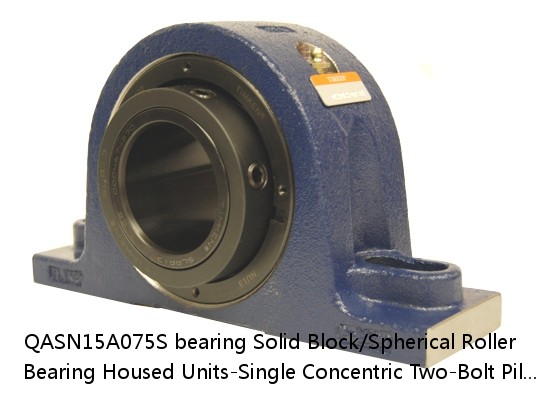

QASN15A075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
QASN15A075S PDF download| Price： | enquiry |
| Model Number： | QASN15A075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 46.0 lb20.9 Kg |
| UPC Code： | 0883450354042 0883450354059 0883450354066 0883450354073 0883450354080 0883450354097 0883450354103 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QASN15A075SB QASN15A075SC QASN15A075SEB QASN15A075SEC QASN15A075SEM QASN15A075SEN QASN15A075SEO QASN15A075SET QASN15A075SM QASN15A075SN QASN15A075SO QASN15A075ST |
| Locking Style | Single Concentric |
| Weight | 46.0 lb20.9 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450354042 0883450354059 0883450354066 0883450354073 0883450354080 0883450354097 0883450354103 0883450354110 0883450354127 0883450354134 0883450354141 0883450354158 |
| Dimension A | 3.74 in95.0 mm |
| Dimension B | 7.20 in183 mm |
| Dimension C | 4.29 in114.0 mm |
| Dimension D Max | 10.98 in279.0 mm |
| Dimension D Min | 9.49 in241.0 mm |
| Dimension F | 12.44 in316.0 mm |
| Dimension G | 2.990 in76.00 mm |
| Dimension H | 1.34 in34.0 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension KA | 1.26 in32.0 mm |
| Dimension L | 3.86 in98.0 mm |
| Dimension M | 2.36 in60 mm |
| Dimension RA | 0.24 in6.0 mm |
| Dimension SA | 3.62 in92.0 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| GE 40 TXG3E-2LS | 465.000 | 280.000 | 7.000 | 40.000 | 62.0000 | 500 |
| KT 162212EG | 16 | KT 162212EG | 9.7 | 16 | 22 | 10500 |
| 430238U | 190 | 1.5 | 5.0 | 430238U | 45.400 | 1100 |
| BNF3212-3.5RRG1+118LC0 | 118.000 | BNF3212-3.5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| QMFY18J303S | 4.31 | 2.90 | 42 lb19.1 Kg | 0883450074322 0883450074339 0883450074353 0883450074360 0883450074377 0883450074384 0883450074391 08 | 0.0030 in0.076 mm | 3-3/16 in |
| 69192RU | 95 | 1.1 | 4800 | 69192RU | 130 | 1.65 |
| 590820 | 241.3000 | 292.100 | 590820 | R | HDS1 | 25.400 |
| SNW-11X1-13/16 | HMVC 11E | N 11 | SNW-11X1-13/16 | 75.540 | 46.038 | 55.000 |
| 6207 | 35 | 1.1 | 0.288 | 9800 | 72 | 25700 |
| 4T-32012X | 23.00 | 60 | 1.5 | 1.5 | 4T-32012X | 0.58 |
