Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
- QAPL13A065S

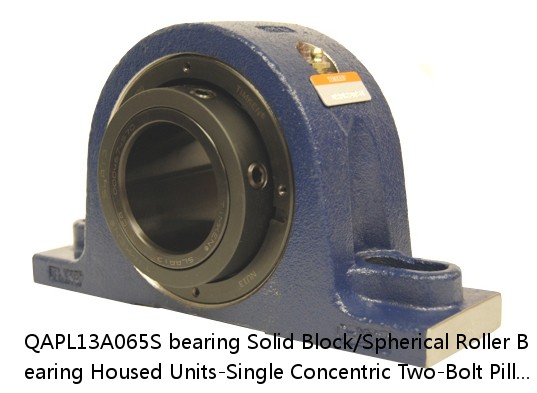

QAPL13A065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
QAPL13A065S PDF download| Price： | enquiry |
| Model Number： | QAPL13A065S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450047401 0883450047418 0883450047432 0883450047449 0883450047456 0883450047463 0883450047470 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAPL13A065SB QAPL13A065SC QAPL13A065SEB QAPL13A065SEC QAPL13A065SEM QAPL13A065SEN QAPL13A065SEO QAPL13A065SET QAPL13A065SM QAPL13A065SN QAPL13A065SO QAPL13A065ST |
| Locking Style | Single Concentric |
| Weight | 22.00 lb10.00 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450047401 0883450047418 0883450047432 0883450047449 0883450047456 0883450047463 0883450047470 0883450047487 0883450188531 0883450188692 0883450266031 0883450266192 |
| Dimension A | 2.75 in69.9 mm |
| Dimension B | 5.8 in147.3 mm |
| Dimension C | 3.81 in96.8 mm |
| Dimension D Max | 7.44 in189.0 mm |
| Dimension D Min | 6.81 in173.0 mm |
| Dimension F | 9.250 in235.00 mm |
| Dimension G | 2.900 in73.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension KA | 1.24 in31.5 mm |
| Dimension L | 3.60 in91.4 mm |
| Dimension M | 2.15 in54.6 mm |
| Dimension RA | 0.21 in5.3 mm |
| Dimension SA | 3.39 in86.1 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NA5905 | 0.30 | NA5905 | 0.139 | 13000 | 8500 | 42 |
| QMFX09J112S | 3.72 | 2.5 | 11.0 lb5.0 Kg | 0883450142168 0883450142175 0883450142182 0883450142199 0883450142205 0883450142212 0883450142229 08 | 0.0015 in0.038 mm | 1-3/4 in |
| BSS4530-4E | BSS4530-4E | - | - | - | - | - |
| 7221CDF FY | 105 | 2.1 | 7221CDF FY | 5700 | 4300 | 190 |
| SKR5520A-0800-R1-10WV-14M | SKR55 | - | - | - | - | - |
| 23076KEJW507C08 | 3.01 | 4.58 | 3.08 | 23076KCJW507C08 | 830 | 710 |
| KMJ23x27x12.8X1S | KMJ23x27x12.8X1S | 0.0086 | 17000 | 11000 | 23 | 27 |
| 4T-33011 | 27.00 | 55 | 1.5 | 1.5 | 4T-33011 | 0.64 |
| C 3024 V | 1400 | - | - | 120.000 | 65.500 | 640.000 |
| NNU49/750MAW33 | 250.000 mm9.8425 in | 1252.200 lb | 200 rpm | 190 rpm | 16480 kN3700000 lbf | 1000.000 mm39.3701 in |
