Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
- QAP20A315S

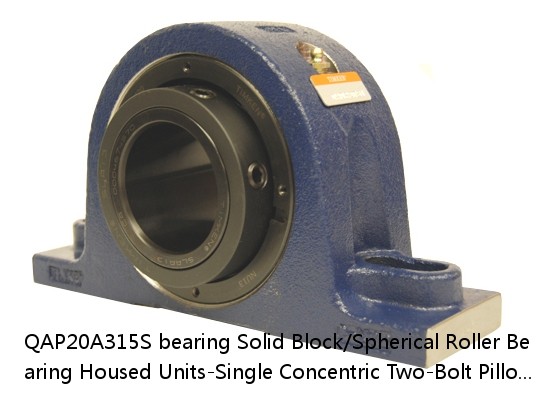

QAP20A315S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Two-Bolt Pillow Block
QAP20A315S PDF download| Price： | enquiry |
| Model Number： | QAP20A315S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 59.0 lb26.8 Kg |
| UPC Code： | 0883450045605 0883450045612 0883450045636 0883450045643 0883450045650 0883450045667 0883450045674 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAP20A315SB QAP20A315SC QAP20A315SEB QAP20A315SEC QAP20A315SEM QAP20A315SEN QAP20A315SEO QAP20A315SET QAP20A315SETSLA QAP20A315SETSLD QAP20A315SM QAP20A315SN QAP20A315SO QAP20A315ST QAP20A315STSLA QAP |
| Locking Style | Single Concentric |
| Weight | 59.0 lb26.8 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450045605 0883450045612 0883450045636 0883450045643 0883450045650 0883450045667 0883450045674 0883450045681 0883450187961 0883450188128 0883450265461 0883450265621 0883450457408 0883450457415 0883 |
| Dimension A | 4.13 in104.9 mm |
| Dimension B | 8.26 in209.8 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 12.60 in320.0 mm |
| Dimension D Min | 10.04 in255.0 mm |
| Dimension F | 14.25 in362.0 mm |
| Dimension G | 3.730 in94.70 mm |
| Dimension H | 2.00 in50.8 mm |
| Dimension J (Bolt Size) | 1.000 in24 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L | 4.84 in122.9 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RA | 0.24 in6.1 mm |
| Dimension SA | 4.60 in116.8 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 46384 | 224 | 420 | 3.0 | 6.0 | 46384 | 700 |
| 23896R | 3.0 | 460 | 350 | 23896R | 600 | 306 |
| 1318K;H318X | 90 | 1318K;H318X | 1.370 | - | - | - |
| SAFS 22516 | 330.200 | SAFS 516 | 88.9000 | 174.62500 | SAFS 22516 | 68.2625 |
| 524216 | CT1 | 524216 | 704.850 | 12.700 | 23.825 | - |
| 7314BDT | Standard | 70 | 2.0 | 2.1 | 7314BDT | 4000 |
| NN3028ZTB | 8 | 140 | 2 | 2.0 | NN3028ZTB | 149 |
| CF 20G | 125.0 | 20 | 1.0 | 34 | 20 | CF 20G |
| QVPKT15V207S | 4.67 | 3.14 | 28 lb12.7 Kg | 0883450057042 0883450057066 0883450206938 0883450206976 0883450219365 0883450219402 0883450231787 08 | 0.0015 in0.038 mm | 2-7/16 in |
| AR 395 | +0.36/0 | 4.0 | 7.5 | AR 395 | 402.0 | 400.0 |
