Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPL10J200S

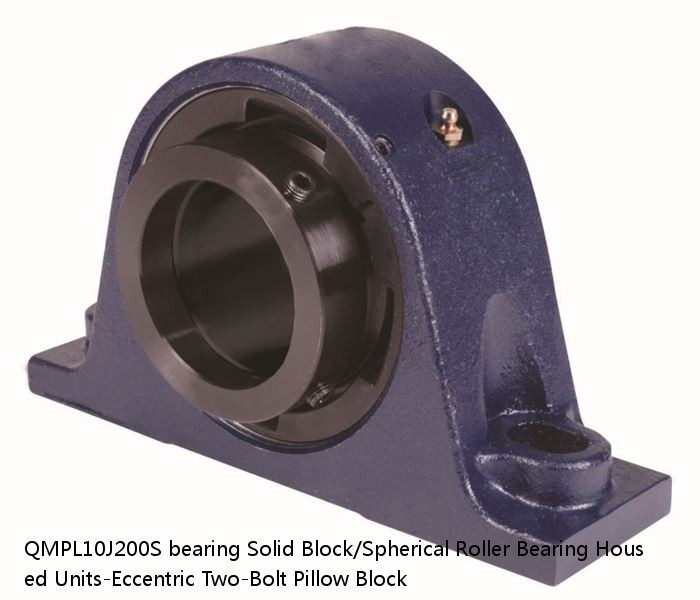

QMPL10J200S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL10J200S PDF download| Price： | enquiry |
| Model Number： | QMPL10J200S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 13 lb5.9 Kg |
| UPC Code： | 0883450087124 0883450087131 0883450087155 0883450087162 0883450087179 0883450087186 0883450087193 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPL10J200SB QMPL10J200SC QMPL10J200SEB QMPL10J200SEC QMPL10J200SEM QMPL10J200SEN QMPL10J200SEO QMPL10J200SET QMPL10J200SM QMPL10J200SMNPFG QMPL10J200SN QMPL10J200SO QMPL10J200ST QMPL10J200STSLC QMPL1 |
| Locking Style | Eccentric |
| Weight | 13 lb5.9 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450087124 0883450087131 0883450087155 0883450087162 0883450087179 0883450087186 0883450087193 0883450087209 0883450155038 0883450155373 0883450249980 0883450250320 0883450432184 0883450456876 0883 |
| Dimension A | 2.25 in57.2 mm |
| Dimension B | 4.81 in122.2 mm |
| Dimension C | 2.81 in71.4 mm |
| Dimension D Max | 6.36 in161.5 mm |
| Dimension D Min | 5.93 in150.6 mm |
| Dimension F | 8.38 in212.9 mm |
| Dimension G | 2.440 in62.00 mm |
| Dimension H | 1.25 in31.8 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension K | 0.98 in24.9 mm |
| Dimension L | 3.11 in79.0 mm |
| Dimension M | 1.87 in47.5 mm |
| Dimension R | 0.24 in6.1 mm |
| Dimension S | 2.87 in72.9 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 22234EJW33C3SLA | 2.55 | 3.89 | 2.61 | 22234CJW33C3SLA | 2000 | 1700 |
| NU405W | Standard | 25 | 1.5 | 1.5 | 1.5 | 1.5 |
| NKJ40/30A | 40 | 0.3 | NKJ40/30A | 9400 | 45 | 55 |
| 22212AEXK | 60 | 1.5 | 1.22 | 7800 | 6150 | 110 |
| 7036DF FY | 180 | 1.1 | 2.1 | 2400 | 1900 | 7036DFFY |
| 6228/2RS/C3 | 7.45 Kg | 3.000 mm | 42.000 mm | 250.000 mm | 4900 rpm | 3400 rpm |
| 61903/ZZ/C3 | 0.016 Kg | 0.300 mm | 7.000 mm | 30.000 mm | Shields | 4.6 kN |
| SHT 17 | 18 | 150 | 8 | M 6x12 | 36.0 | 27 |
| NU1014 | 70 | 1.0 | 1.1 | 0.712 | 7100 | 6000 |
| YAS 2 3/16 SGT | 8.600 lb3.9009 Kg | 2.374 in60.3 mm | 222.3 mm8.752 in | 127.8 mm5.031 in | 6570 lbf29200 N | 2 3/16 in55.6 mm |
