Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMP20J315S

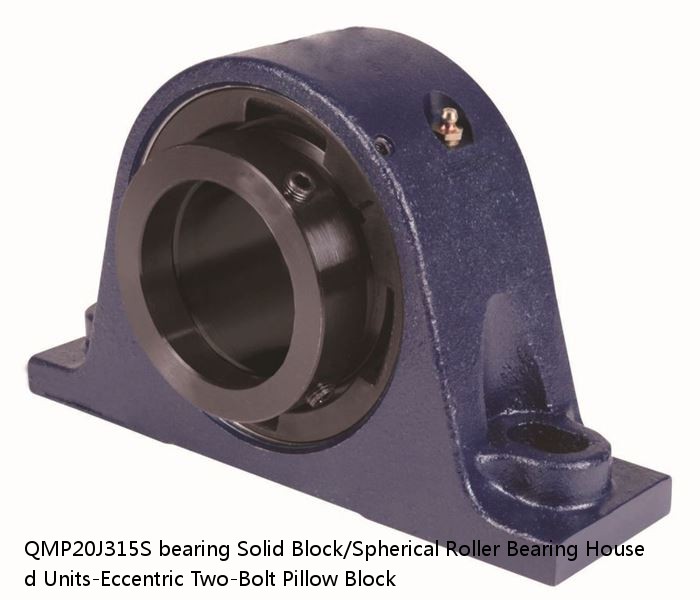

QMP20J315S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMP20J315S PDF download| Price： | enquiry |
| Model Number： | QMP20J315S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 59.0 lb26.8 Kg |
| UPC Code： | 0883450083027 0883450083034 0883450083058 0883450083065 0883450083072 0883450083089 0883450083096 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMP20J315SB QMP20J315SC QMP20J315SEB QMP20J315SEC QMP20J315SEM QMP20J315SEN QMP20J315SEO QMP20J315SET QMP20J315SM QMP20J315SN QMP20J315SO QMP20J315ST |
| Locking Style | Eccentric |
| Weight | 59.0 lb26.8 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450083027 0883450083034 0883450083058 0883450083065 0883450083072 0883450083089 0883450083096 0883450083102 0883450154574 0883450154918 0883450249546 0883450249881 |
| Dimension A | 4.13 in104.9 mm |
| Dimension B | 8.26 in209.8 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 12.60 in320.0 mm |
| Dimension D Min | 10.04 in255.0 mm |
| Dimension F | 14.25 in362.0 mm |
| Dimension G | 3.730 in94.70 mm |
| Dimension H | 2.00 in50.8 mm |
| Dimension J (Bolt Size) | 1.000 in24 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L | 4.84 in122.9 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension R | 0.24 in6.1 mm |
| Dimension S | 4.590 in116.60 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HR33015J | 1.10 | Standard | 75 | 1.5 | 1.5 | 1.5 |
| 6248 | 240 | 4.0 | 49.900 | 1200 | 440 | 340000 |
| VRU 9610 | VRU 9610 | - | - | - | - | - |
| BH-2020 | 0.102 / 0.224 | 1.2500 / 1.6250 / 1.250 | 1 1/4 | 31.750 / 1.2500 | 41.275 / 1.6250 | 17.6 |
| SHR 17 | 18 | 150 | 8 | M 6x12 | 36.0 | 27 |
| 7038C FY | 190 | 1.100 | 2.100 | 4200 | 3100 | 7038CFY |
| 51209 | 5000 | 3600 | 3.2 | 86.5 | 39.0 | 0.00 |
| 24076EK30W33 | 380 | 5.0 | 154.00 | 840 | 670 | 560 |
| 51103 V/HR22T2 | 440 | 0.500 | 0.625 | 51103 V/HR22T2 | 17.000 | 30.000 |
| 460RX2371 | 400.000 mm15.7480 in | 400.000 mm15.7480 in | 1167.100 lb | RX-1 | 8780 kN1972000 lbf | 518RXS2371 |
