Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Round Flange Block
- QMFY10J200S

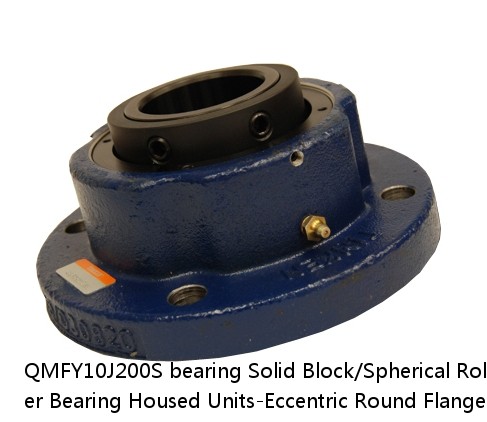

QMFY10J200S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Round Flange Block
QMFY10J200S PDF download| Price： | enquiry |
| Model Number： | QMFY10J200S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 12 lb5.4 Kg |
| UPC Code： | 0883450072922 0883450072939 0883450072953 0883450072960 0883450072977 0883450072984 0883450072991 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMFY10J200SB QMFY10J200SC QMFY10J200SEB QMFY10J200SEC QMFY10J200SEM QMFY10J200SEN QMFY10J200SEO QMFY10J200SET QMFY10J200SM QMFY10J200SN QMFY10J200SO QMFY10J200ST |
| Locking Style | Eccentric |
| Weight | 12 lb5.4 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450072922 0883450072939 0883450072953 0883450072960 0883450072977 0883450072984 0883450072991 0883450073004 0883450163606 0883450164146 0883450255943 0883450256476 |
| Dimension BC | 5.75 in146.1 mm |
| Dimension C | 2.760 in70.10 mm |
| Dimension D | 4.30 in109.2 mm |
| Dimension E | 4.07 in103.4 mm |
| Dimension F | 7 in177.8 mm |
| Dimension H | 0.75 in19.1 mm |
| Dimension J (Bolt Size) | 0.5 in12 mm |
| Dimension K | 0.98 in24.9 mm |
| Dimension L Exp | 3.07 in78 mm |
| Dimension L Fix | 2.99 in75.9 mm |
| Dimension M | 1.89 in48 mm |
| Dimension N | 2.300 in58.40 mm |
| Dimension R | 0.12 in3 mm |
| Dimension S | 2.87 in72.9 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0014 |
| Eng Internal Radial Clearance - Max | 0.0022 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 24032CAMK30E4 | 24032CAMK30E4 | 12.70 | 240 | 2.3 | 3.4 | 2.2 |
| SN 620 1 | M20 | M24 | 2 | SN 620 | 32 | 26 |
| 16010 | 0.18 Kg | 0.600 mm | 10.000 mm | 80.000 mm | 9100 rpm | 6300 rpm |
| 23032EJW33C3 | 3.05 | 4.65 | 3.12 | 23032CJW33C3 | 2400 | 2000 |
| RSA 2 1/8 | 13.276 lb6.022 Kg | 3.126 in79.4 mm | 288.9 mm11.374 in | 142.1 mm5.594 in | 6570 lbf29200 N | 2 1/8 in54 mm |
| UKTX13+H2313X | B-PT1/8 | 60 | Medium-duty(X) | UKTX13+H2313X | - | - |
| SILKB 22 F | 61.00 | 38.00 | 55.000 | 22.000 | 21.000 | 28.000 |
| GEZM 304 ES-2LS | 1760.000 | 580.000 | 5.000 | 82.550 | 130.1750 | 300 |
| ZKPX05-12 | A-1/4-28UNF | ZKPX05-12 | Medium-duty (X) | 3/4 | - | - |
| HAR916CDT | 80 | 0.0 | 0.0 | 14000 | 9300 | HAR916CDT |
