Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPX15A300S

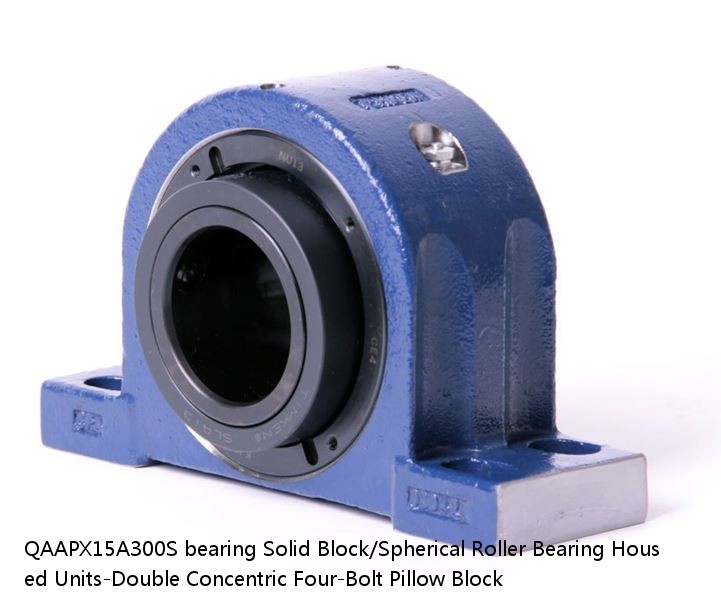

QAAPX15A300S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPX15A300S PDF download| Price： | enquiry |
| Model Number： | QAAPX15A300S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 45 lb20.40 Kg |
| UPC Code： | 0.0020 in0.051 mm |
| Shaft Size Type： | 3 in |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPX15A300SB QAAPX15A300SC QAAPX15A300SEB QAAPX15A300SEC QAAPX15A300SEM QAAPX15A300SEN QAAPX15A300SEO QAAPX15A300SET QAAPX15A300SM QAAPX15A300SN QAAPX15A300SO QAAPX15A300ST |
| Locking Style | Double Concentric |
| Weight | 45 lb20.40 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450009744 0883450009812 0883450009843 0883450009911 0883450009942 0883450010016 0883450010047 0883450010115 0883450010146 0883450010214 0883450267618 0883450267830 |
| Dimension A | 3.50 in88.9 mm |
| Dimension B | 6.83 in173.5 mm |
| Dimension C | 4.29 in109 mm |
| Dimension D Max | 10.44 in265.2 mm |
| Dimension D Min | 9.06 in230.1 mm |
| Dimension E | 2.75 in69.9 mm |
| Dimension F | 13.000 in330.20 mm |
| Dimension G | 4.2500 in108.00 mm |
| Dimension H | 1.54 in39.1 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension L | 4.50 in114.3 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension R | 0.84 in21.3 mm |
| Dimension S | 4.74 in120.4 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HMK3013 | HMK3013 | 0.04 | 8000 | 5500 | IR25x30x16 | 30 |
| K42x48x17 | K42x48x17 | 0.036 | 9500 | 6500 | 42 | 48 |
| LM814849/10 | 25.400 | 77.788 | 3.2 | 3.6 | 4100 | 3100 |
| QVC16V300S | 4.67 | 3.14 | 22.00 lb10.00 Kg | 0883450037594 0883450061544 0883450105316 0883450105354 0883450184106 0883450213035 0883450213417 08 | 0.0020 in0.051 mm | 3 in |
| NU420 | 100 | 4.0 | 4.0 | 14.400 | 3000 | 2600 |
| QJ319 | 95 | 3.0 | QJ319 | 7.41 | 3 500 | 2 700 |
| 6219/2RS/C3 | 2.6 Kg | 2.100 mm | 32.000 mm | 170.000 mm | 6700 rpm | 4700 rpm |
| 231/560E | 560 | 7.5 | 732.00 | 480 | 360 | 920 |
| B-2220 | 0.071 / 0.156 | 1.3750 / 1.6250 / 1.250 | 1 3/8 | 34.925 / 1.3750 | 41.275 / 1.6250 | 20.3 |
| W3217FS-1-C5T25 | 2070 | W3217FS-1-C5T25 | 1700 | - | - | - |
