Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
- QAAPR15A300S

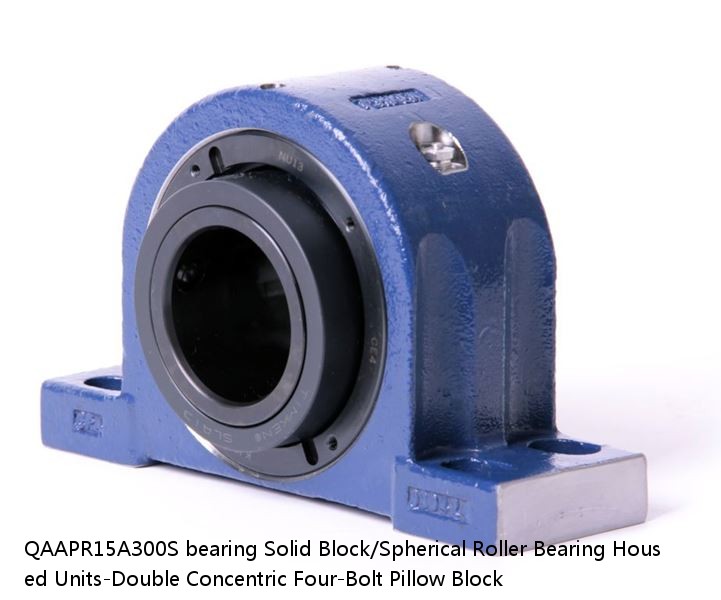

QAAPR15A300S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four-Bolt Pillow Block
QAAPR15A300S PDF download| Price： | enquiry |
| Model Number： | QAAPR15A300S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 27 lb12.2 Kg |
| UPC Code： | 0.0020 in0.051 mm |
| Shaft Size Type： | 3 in |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAAPR15A300SB QAAPR15A300SC QAAPR15A300SEB QAAPR15A300SEC QAAPR15A300SEM QAAPR15A300SEN QAAPR15A300SEO QAAPR15A300SET QAAPR15A300SM QAAPR15A300SN QAAPR15A300SO QAAPR15A300ST |
| Locking Style | Double Concentric |
| Weight | 27 lb12.2 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450030205 0883450030212 0883450030236 0883450030243 0883450030250 0883450030267 0883450030274 0883450030281 0883450190008 0883450190114 0883450267366 0883450267472 |
| Dimension A | 3.13 in79.5 mm |
| Dimension B | 6.47 in164.3 mm |
| Dimension C | 4.29 in109 mm |
| Dimension D Max | 9.60 in243.8 mm |
| Dimension D Min | 8.00 in203.2 mm |
| Dimension E | 2.13 in54.1 mm |
| Dimension F | 10.83 in275.1 mm |
| Dimension G | 3.380 in85.90 mm |
| Dimension H | 1.16 in29.5 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 4.02 in102.1 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RAA | 0.88 in22.4 mm |
| Dimension SAA | 4.74 in120.4 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| M667947ADW/M667911 | 6.3749 in161.922 mm | M667900 | 0.080 in2.00 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 21.5000 in546.100 mm |
| QVPN22V100S | 4.06 | 2.73 | 84 lb38.1 Kg | 0883450058513 0883450058544 0883450205856 0883450205993 0883450218276 0883450218429 0883450230698 08 | 0.0030 in0.076 mm | 100 mm |
| NUP409W | Standard | 45 | 2.0 | 2.0 | 2.0 | 2.0 |
| QMFX09J112S | 3.72 | 2.5 | 11.0 lb5.0 Kg | 0883450142168 0883450142175 0883450142182 0883450142199 0883450142205 0883450142212 0883450142229 08 | 0.0015 in0.038 mm | 1-3/4 in |
| 22318EXQK | 90 | 3.0 | 8.82 | 3200 | 2600 | 190 |
| 23340EMBW33W45AW800 | 1.62 | 2.47 | 1.66 | 720 | 670 | 4.000 mm0.160 in |
| GE 25 TXE-2LS | 228.000 | 137.000 | 7.000 | 25.000 | 42.0000 | 500 |
| AOH 24080 | HM 3184 | HMV 84 E | AOH 24080 | 380.000 | 400.000 | 248.000 |
| 7012A5 | 60 | 0.60 | 1.1 | 7012A5 | 408 | 27.1 |
| 3202 | 15 | 0.6 | 16000 | 12000 | 35 | 0.390 |
