Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
- QAATU20A400S

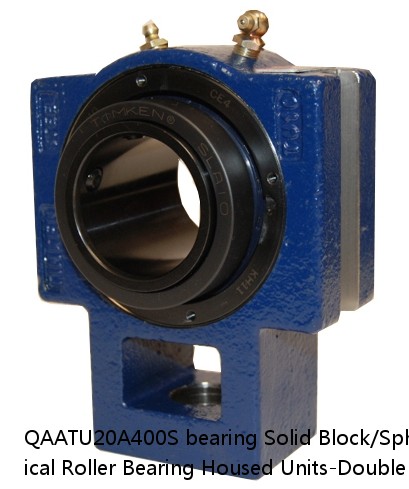

QAATU20A400S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
QAATU20A400S PDF download| Price： | enquiry |
| Model Number： | QAATU20A400S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 58.0 lb26.3 Kg |
| UPC Code： | 0883450016896 0883450016926 0883450016995 0883450017022 0883450017091 0883450034500 0883450034517 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAATU20A400SB QAATU20A400SC QAATU20A400SEB QAATU20A400SEC QAATU20A400SEM QAATU20A400SEN QAATU20A400SEO QAATU20A400SET QAATU20A400SM QAATU20A400SN QAATU20A400SO QAATU20A400ST |
| Locking Style | Double Concentric |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450016896 0883450016926 0883450016995 0883450017022 0883450017091 0883450034500 0883450034517 0883450034579 0883450034586 0883450195621 0883450272810 0883450272971 |
| Dimension A | 4.13 in104.9 mm |
| Dimension C | 1.13 in28.7 mm |
| Dimension D | 9.44 in239.8 mm |
| Dimension E | 8.63 in219.2 mm |
| Dimension F | 2.13 in54.1 mm |
| Dimension G | 2.06 in52.3 mm |
| Dimension J | 5.63 in143.0 mm |
| Dimension L | 11.69 in296.9 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension N | 4.79 in121.7 mm |
| Dimension P | 7.00 in177.8 mm |
| Dimension S | 2.060 in52.30 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| BT4-8093 G/HA1VA901 | 310.000 | 570 | 6550 | 2860 | BT4-8093 G/HA1VA901 | 310.000 |
| 7310BDF | 50 | 1.00 | 2.0 | 2.280 | 5300 | 4000 |
| H3032 | 5.21 Kg | M160x3 | MBL32 | KML32 | 93.00 mm | 190 mm |
| UCHA214-44 | A-R1/8 | UCHA214-44 | 2 3/4 | Normal-duty(2) | - | - |
| 61804 | 0.016 Kg | 0.300 mm | 7.000 mm | 32.000 mm | Open | 4 kN |
| UCSPA206JH1S6 | A-1/4-28UNF | 30 | Normal-duty(2) | UCSPA206JH1S6 | Standard | - |
| 22234CAME4 | 22234CAME4 | 28.80 | 310 | 2.6 | 3.8 | 2.5 |
| NUP203 | 17 | 0.3 | 0.6 | 0.082 | 19000 | 16000 |
| NKJ40/30A | 40 | 0.3 | NKJ40/30A | 9400 | 45 | 55 |
| 7926DB | 130 | 1.00 | 1.5 | 7926 | 1.820 | 4 700 |
