Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
- QAATU15A070S

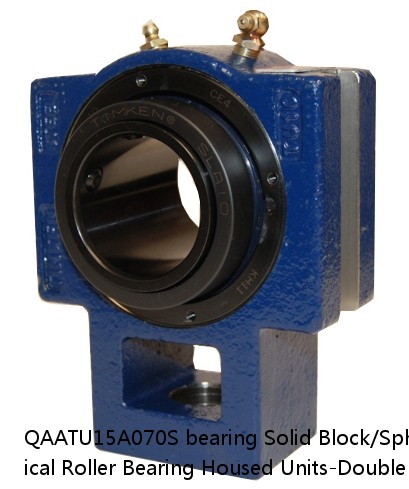

QAATU15A070S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
QAATU15A070S PDF download| Price： | enquiry |
| Model Number： | QAATU15A070S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 35 lb15.90 Kg |
| UPC Code： | 0883450322980 0883450322997 0883450323000 0883450323017 0883450323024 0883450323031 0883450323048 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAATU15A070SB QAATU15A070SC QAATU15A070SEB QAATU15A070SEC QAATU15A070SEM QAATU15A070SEN QAATU15A070SEO QAATU15A070SET QAATU15A070SM QAATU15A070SN QAATU15A070SO QAATU15A070ST |
| Locking Style | Double Concentric |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450322980 0883450322997 0883450323000 0883450323017 0883450323024 0883450323031 0883450323048 0883450323055 0883450323062 0883450323079 0883450323086 0883450323093 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension N | 3.82 in97.0 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb220 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.050 mm0.0020 in |
| Pre Install Clearance Max | 0.080 mm0.0031 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| E/P4B/TRB/4/ECO/ECC | 2.14 | 1.77 | 0.7 | 0.87 | 71.000 lb | 0883450506021 |
| AHX3296G | 73.40 Kg | Tr500x5 | 1:12 | 376.00 mm | 364.00 mm | 460.00 mm |
| 7218ACDF | 90 | 1.00 | 2.0 | 4.600 | 8500 | 6300 |
| 23168RHA | 5.0 | 23168RHA | 640 | 480 | 580 | 449 |
| 7022DB | 110 | 1.00 | 2.0 | 7022 | 2.300 | 5 300 |
| 6319/Z/C3 | 5.750 Kg | 3.000 mm | 45.000 mm | 200.000 mm | 6600 rpm | 4600 rpm |
| 60192RS | 95 | 1.5 | 60192RS | 4400 | 145 | 2.75 |
| 7317DF | 85 | 1.10 | 3.0 | 7317 | 4.340 | 5 600 |
| 30238JR | 60.00 | 190 | 5.0 | 30238JR | 1300 | 1000 |
| UCFL312 | A-PT1/8 | 60 | Heavy-duty(3) | UCFL312 | - | - |
