Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
- QAATU10A115S

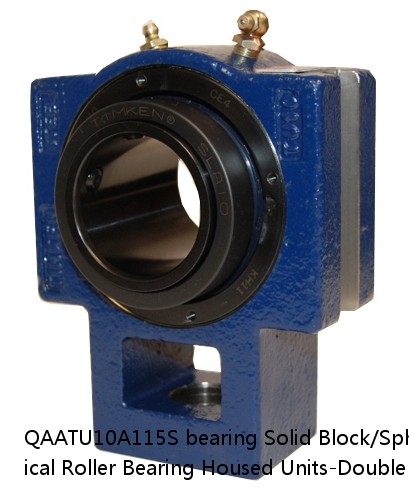

QAATU10A115S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Take-Up Block
QAATU10A115S PDF download| Price： | enquiry |
| Model Number： | QAATU10A115S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 17.0 lb7.7 Kg |
| UPC Code： | 0883450014366 0883450014373 0883450014397 0883450014441 0883450014458 0883450033107 0883450033114 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22210 |
| Shaft Size | 1-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAATU10A115SB QAATU10A115SC QAATU10A115SEB QAATU10A115SEC QAATU10A115SEM QAATU10A115SEN QAATU10A115SEO QAATU10A115SET QAATU10A115SM QAATU10A115SN QAATU10A115SO QAATU10A115ST |
| Locking Style | Double Concentric |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450014366 0883450014373 0883450014397 0883450014441 0883450014458 0883450033107 0883450033114 0883450033176 0883450033183 0883450195478 0883450272667 0883450272827 |
| Dimension A | 2.13 in54.1 mm |
| Dimension C | 0.75 in19.1 mm |
| Dimension D | 4.75 in120.7 mm |
| Dimension E | 4.00 in101.6 mm |
| Dimension F | 1.06 in26.9 mm |
| Dimension G | 1.06 in26.9 mm |
| Dimension J | 2.88 in73.2 mm |
| Dimension L | 6.04 in153.4 mm |
| Dimension M | 1.87 in47.5 mm |
| Dimension N | 2.98 in75.7 mm |
| Dimension P | 3.50 in88.9 mm |
| Dimension S | 0.690 in17.50 mm |
| C0 - Static Load | 26600 lb118 kN |
| C - Dynamic Load (Basic) | 26300 lb117 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 2400 rpm |
| Oil Lubrication - T Seal | 4200 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2400 rpm |
| Grease Lubrication - T Seal | 3550 rpm |
| Grease Lubrication - B/C/O Seal | 1800 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.040 mm0.0016 in |
| Pre Install Clearance Max | 0.065 mm0.0026 in |
