Double Concentric Solid-Block Housed Units

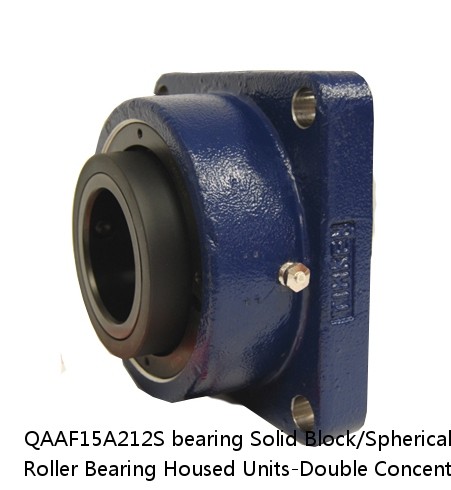

QAAF15A212S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Four Bolt Square Flange Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QAAF15A212S
Weight：	4.48
Bearing Number：	3.01
Housing Construction：	23 lb10.40 Kg
UPC Code：	0883450079822 0883450079839 0883450079853 0883450079860 0883450079884 0883450079891 0883450079907 08
Shaft Size Type：	0.0020 in0.051 mm

Engineering Group	Mounted Bearing
Bearing Number	22215
Shaft Size	2-3/4 in
Shaft Size Type	Imperial
Full Timken Part Number	QAAF15A212SB QAAF15A212SC QAAF15A212SEB QAAF15A212SEC QAAF15A212SEM QAAF15A212SEN QAAF15A212SEO QAAF15A212SET QAAF15A212SM QAAF15A212SN QAAF15A212SO QAAF15A212ST
Locking Style	Double Concentric
Weight	23 lb10.40 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450079822 0883450079839 0883450079853 0883450079860 0883450079884 0883450079891 0883450079907 0883450079914 0883450079921 0883450079938 0883450086240 0883450086745
Dimension BC	8.48 in215.4 mm
Dimension C	4.50 in114.3 mm
Dimension D	6.650 in168.90 mm
Dimension E	6.000 in152.4 mm
Dimension F	7.44 in189.00 mm
Dimension H	1.06 in26.9 mm
Dimension J (Bolt Size)	0.75 in20 mm
Dimension L Exp	3.85 in97.8 mm
Dimension L Fix	3.77 in95.8 mm
Dimension M	2.37 in60.2 mm
Dimension N	2.840 in72.10 mm
Dimension RAA	0.97 in24.6 mm
Dimension SAA	4.74 in120.4 mm
C0 - Static Load	54100 lb240 kN
C - Dynamic Load (Basic)	49900 lb222 kN
e - Geometry Factor	0.22
Y1 - Geometry Factor	3.01
Y2 - Geometry Factor	4.48
Oil Lubrication - M/N Seal	1600 rpm
Oil Lubrication - T Seal	2900 rpm
Oil Lubrication - B/C/O Seal	1300 rpm
Grease Lubrication - M/N Seal	1600 rpm
Grease Lubrication - T Seal	2400 rpm
Grease Lubrication - B/C/O Seal	1300 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0020 in0.051 mm
Eng Internal Radial Clearance - Min	0.0020
Eng Internal Radial Clearance - Max	0.0031
Pre Install Clearance Min	0.0020 in0.050 mm
Pre Install Clearance Max	0.0031 in0.080 mm
