Split Block - SAF Housed Units
- Inch Straight Bore Mounting Pillow Block SDAF231 and SDAF232 Series
- SDAF 23272

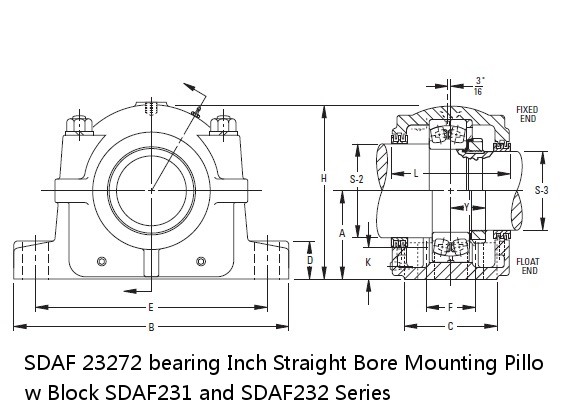

SDAF 23272 bearing | Inch Straight Bore Mounting Pillow Block SDAF231 and SDAF232 Series
SDAF 23272 PDF download| Price： | enquiry |
| Model Number： | SDAF 23272 |
| Weight： | ER981 |
| Bearing Number： | ER965-1 |
| Housing Construction： | 2 |
| UPC Code： | A8979 |
| Shaft Size Type： | 5.5000 in |
| Bearing Number | 23272 |
| Diameter S-2 | 16 in |
| Diameter S-3 | 13 3/4 in |
| A | 15.5000 in |
| B | 48.7500 in |
| C | 18.7500 in |
| D | 5.5000 in |
| E Max. | 43.5000 in |
| E Min. | 41.7500 in |
| F | 12.25 in |
| H1 | 30.5000 in |
| Oil Level K | 5.5000 in |
| L2 | 19.750 in |
| 4 base Bolts Req’d | 2.25 in |
| Housing Only3 | SDAF3272 |
| Bolt Hole Length | 3.125 in |
| Bolt Hole Width | 2.25 in |
| Stabilizing Ring 1 Req’d4 | A8979 |
| Triple Seal 2 Req’d at S-2 | ER965-1 |
| Triple Seal 2 Req’d at S-3 | ER981 |
| Assembly Weight | 2950.000 lb |
| Lock Washer | NO72 |
| Lock Plate | P72 |
| Tightening Bolt Size | 2 |
| Full Timken Part Number | SDAF23272 |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NUP2228R | 140 | 3.0 | 3.0 | 2900 | 2200 | NUP2228R |
| 22230KEMW33C4 | 2.63 | 4 | 2.69 | 2400 | 2000 | 2.5 mm0.100 in |
| HJ2315 | 75 | HJ2315 | 0.43 | 2.1 | - | - |
| 7210BDF FY | 50 | 0.6 | 1.1 | 6800 | 5100 | 7210BDFFY |
| 23164EJW507C08C2 | 2.1 | 3.19 | 2.14 | 23164CJW507C08C2 | 690 | 620 |
| 63172RU | 85 | 3.0 | 63172RU | 3700 | 180 | 6.35 |
| AOH2264G | 19.70 Kg | Tr340x5 | 1:12 | 15 mm | G1/4 | 180.00 mm |
| 6324ZZX | 120 | 3.0 | 2500 | 6324ZZX | 260 | 12.6 |
| CFT 6 | CFT 6 | - | - | - | - | - |
| AXK90120 | 90 | AXK90120 | 3500 | 120 | 43.00 | 405.00 |
