Split Block - SAF Housed Units
- Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
- SDAF 22326
SDAF 22326 bearing | Inch Straight Bore Mounting Pillow Block SDAF222 and SDAF223 Series
SDAF 22326 PDF download| Price： | enquiry |
| Model Number： | SDAF 22326 |
| Weight： | 2.4219 in |
| Bearing Number： | LOR122 |
| Housing Construction： | LOR136 |
| UPC Code： | SR-0-26 |
| Shaft Size Type： | 1.125 in |
| Bearing Number | 22326 |

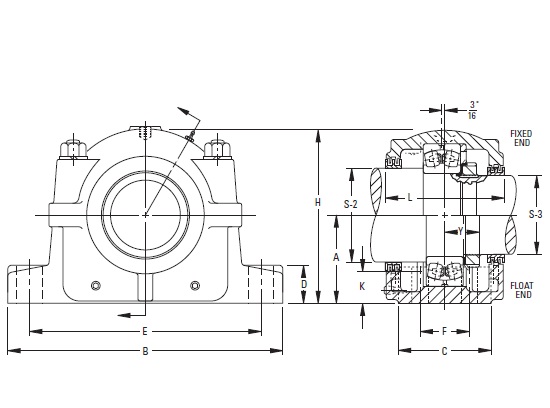

| Diameter S-2 | 5 7/8 in |
| Diameter S-3 | 4 15/16 in |
| A | 6.6875 in |
| B | 22.00 in |
| C | 8.250 in |
| D | 2.50 in |
| E Max. | 19.2500 in |
| E Min. | 17.3750 in |
| F | 5 in |
| H1 | 13.6875 in |
| Oil Level K | 2.6250 in |
| L2 | 8.7500 in |
| Y | 2.4219 in |
| No. of base Bolts Required | 4 |
| Bolt Hole Length | 2.0625 in |
| Bolt Hole Width | 1.125 in |
| Size of base Bolts Required | 1.125 in |
| Locknut | AN26 |
| Lockwasher | W26 |
| Housing Only3 | SDAF326 |
| Stabilizing Ring 1 Req’d4 | SR-0-26 |
| Triple Seal 2 Req’d at S-2 | LOR136 |
| Triple Seal 2 Req’d at S-3 | LOR122 |
| Assembly Weight | 280.000 lb |
| Full Timken Part Number | SDAF22326 |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 87271 | 87271 | 452.420 | 457.200 | 53.980 | - | - |
| HAR013CDT | 65 | 1.1 | HAR013CDT | 16000 | 11000 | 100 |
| 2MM203WI | 0.60 mm0.024 in | 0.60 mm0.024 in | 83800 rpm | 41900 rpm | 6.747002 mm0.265630 in | METRIC |
| 23044EJW33C4 | 2.71 | 4.13 | 2.77 | 23044CJW33C4 | 1700 | 1400 |
| 7072BDB FY | 360 | 5.0 | 7072BDB FY | 800 | 600 | 540 |
| ZKFL307-19 | A-1/4-28UNF | ZKFL307-19 | Heavy-duty(3) | - | 1 3/16 | - |
| 659/652 | 41.275 | 76.200 | 3.60 | 659/652 | 3400 | 2600 |
| B-248 | B-248 | 5.60 | 38.100 | 12.700 | - | 47.625 |
| BTW 95 C | 5000 | 7.800 | 180.000 | 57.200 | 60.000 | 95.000 |
| 633/2RS | 0.003 Kg | 0.200 mm | 5.000 mm | 13.000 mm | 60000 rpm | 51000 rpm |
