Double V-Lock Solid-Block Housed Units
- Double V-Lock Two-Bolt Pillow Block
- QVVP19V080S

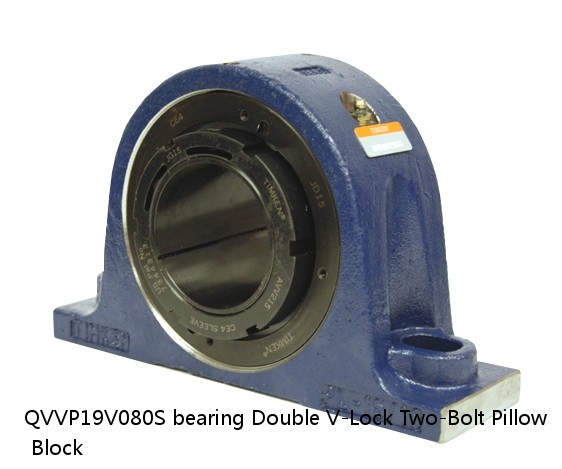

QVVP19V080S bearing | Double V-Lock Two-Bolt Pillow Block
QVVP19V080S PDF download| Price： | enquiry |
| Model Number： | QVVP19V080S |
| Weight： | 4.29 |
| Bearing Number： | 2.88 |
| Housing Construction： | 45 lb20.40 Kg |
| UPC Code： | 0883450170840 0883450171038 0883450171212 0883450171595 0883450171786 0883450171977 0883450202367 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22219 |
| Shaft Size | 80 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVP19V080SB QVVP19V080SC QVVP19V080SEB QVVP19V080SEC QVVP19V080SEM QVVP19V080SEN QVVP19V080SEO QVVP19V080SET QVVP19V080SM QVVP19V080SN QVVP19V080SO QVVP19V080ST |
| Locking Style | Double V-Lock |
| Weight | 45 lb20.40 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450170840 0883450171038 0883450171212 0883450171595 0883450171786 0883450171977 0883450202367 0883450202749 0883450214780 0883450215169 0883450227209 0883450227582 |
| Dimension A | 3.75 in95.3 mm |
| Dimension B | 7.69 in195.3 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D Max | 11.25 in285.8 mm |
| Dimension D Min | 9.38 in238.3 mm |
| Dimension F | 13.50 in342.9 mm |
| Dimension G | 3.410 in86.60 mm |
| Dimension H | 1.88 in47.8 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 4.02 in102.1 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension SVV | 4.63 in117.6 mm |
| C - Dynamic Load (Basic) | 86600 lb385 kN |
| C0 - Static Load | 99000 lb441 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.88 |
| Y2 - Geometry Factor | 4.29 |
| Oil Lubrication - M/N Seal | 1300 rpm |
| Oil Lubrication - T Seal | 2200 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1300 rpm |
| Grease Lubrication - T Seal | 1800 rpm |
| Grease Lubrication - B/C/O Seal | 950 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
