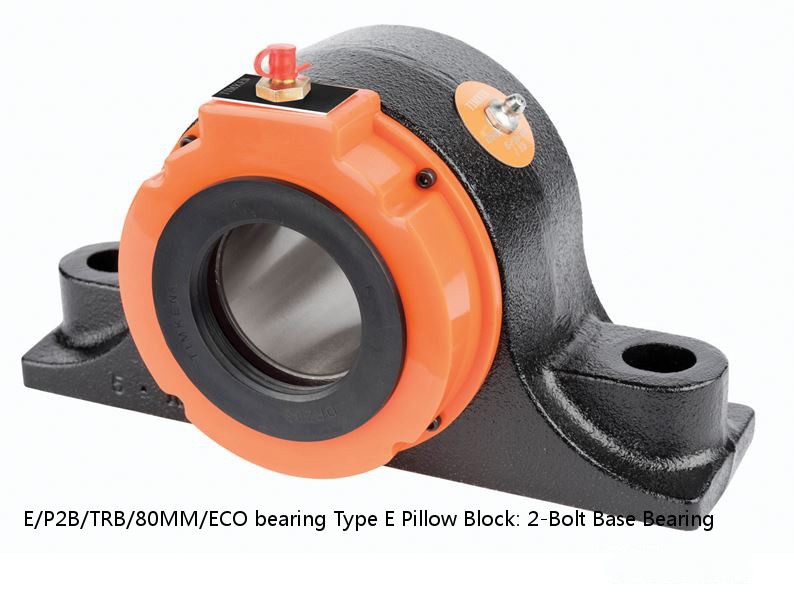

Type E Tapered Roller Bearing Housed Units

E/P2B/TRB/80MM/ECO bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/80MM/ECO
Weight：	2.07
Bearing Number：	1.71
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	46.0 lb

Shaft Size	3.15 in80 mm
Shaft Size Type	Metric
Weight	46.0 lb
UPC Code	0883450507400
Type E Open Cover Number	EUDR-80MM
Dimension B	5 in
Dimension L	14 in
Dimension A	3-1/2 in
Dimension J Min.	10-13/16 in
Dimension J Max.	11-3/16 in
Bolt Diameter	7/8 in
Dimension N	1 in
Dimension N₁	1-3/16 in
Dimension H₁	2-1/4 in
Dimension H₂	7-1/2 in
Dimension d₁	5-17/32 in
Dimension H	3-3/4 in
Dimension A_c	4.8 in
Dimension d₂	6.7 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating¹	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	16000 lb
Max. Speed⁴	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
