Type E Tapered Roller Bearing Housed Units

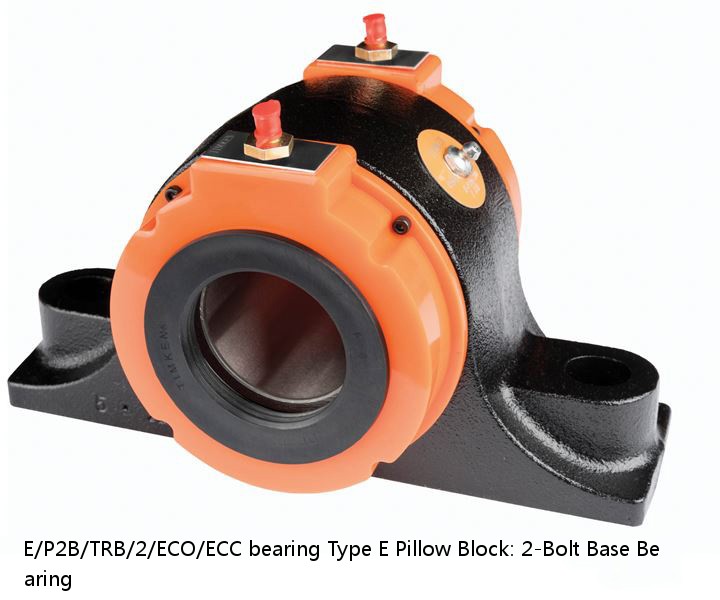

E/P2B/TRB/2/ECO/ECC bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/2/ECO/ECC
Weight：	3.18
Bearing Number：	2.64
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	12 lb

Shaft Size	2 in
Shaft Size Type	Imperial
Weight	12 lb
UPC Code	0883450505659
Type E Open Cover Number	EUDR-2
Type E Closed Cover Number	EUC-D
Dimension B	3-1/2 in
Dimension L	8-7/8 in
Dimension A	2-1/2 in
Dimension J Min.	6-7/8 in
Dimension J Max.	7-1/8 in
Bolt Diameter	5/8 in
Dimension N	3/4 in
Dimension N₁	7/8 in
Dimension H₁	1-5/16 in
Dimension H₂	4-1/2 in
Dimension d₁	3-7/16 in
Dimension H	2-1/4 in
Dimension A_c	4.564 in
Dimension d₂	4.196 in
e	0.33
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	2.64
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	3.18
K Factor	1.83
C₉₀ Dynamic Load Rating¹	10300 lb
C₀ Static Load Rating	43000 lb
F_a-max Maximum Permissible Thrust Load²	2590 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	8400 lb
Max. Speed⁴	3050 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
