Type E Tapered Roller Bearing Housed Units

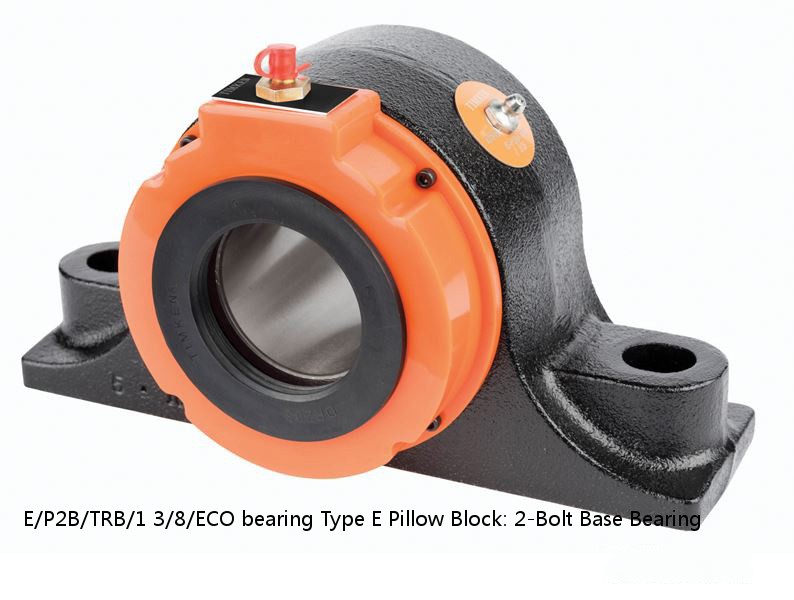

E/P2B/TRB/1 3/8/ECO bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/1 3/8/ECO
Weight：	2.28
Bearing Number：	1.89
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	7.0 lb

Shaft Size	1.375 in
Shaft Size Type	Imperial
Weight	7.0 lb
UPC Code	0883450507141
Type E Open Cover Number	EUDR-1 3/8
Dimension B	3 in
Dimension L	7-3/8 in
Dimension A	2-1/8 in
Dimension J Min.	5-5/8 in
Dimension J Max.	5-7/8 in
Bolt Diameter	1/2 in
Dimension N	5/8 in
Dimension N₁	3/4 in
Dimension H₁	1-1/8 in
Dimension H₂	3-3/4 in
Dimension d₁	2-3/4 in
Dimension H	1-7/8 in
Dimension A_c	3.22 in
Dimension d₂	3.345 in
e	0.46
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.89
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.28
K Factor	1.31
C₉₀ Dynamic Load Rating¹	6100 lb
C₀ Static Load Rating	26000 lb
F_a-max Maximum Permissible Thrust Load²	2590 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	5000 lb
Max. Speed⁴	3820 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
22315KEJW33C3	2	3.04	2.04	22315KCJW33C3	4000	3400
7240DT	200	1.50	4.0	51.000	1600	1200
NA4924	1.10	NA4924	2.84	3000	2000	165
DCS800-S01-3000-07	DCS800-S01-3000-07	2000	2380	2448	2500	2790
409903	409903	999.000	30.000	50.000	988.000	953.000
24048KEMBW33C3	2.26	3.44	2.31	1100	940	2.5 mm0.100 in
BHAM 1816	28.575	BHAM 1816	64.0	28.575	38.100	30900
23030EJW33	3.07	4.68	3.14	23030CJW33	2600	2100
PU070024ARK1PCT---+(4.5)	4.5	PU07AR	-	-	-	-
23192KYMBW507C08	2.19	3.33	2.24	430	390	6.000 mm0.240 in

E-P2B-TRB-1 3/8-ECO/ECO - Timken CAD

Type E tapered roller bearing housed units are available in a wide variety of sizes and configurations to meet the requirements of demanding applications.
