Type E Tapered Roller Bearing Housed Units
- Type E Pillow Block: 4-Bolt Base Bearing
- E/P4B/TRB/4 7/16

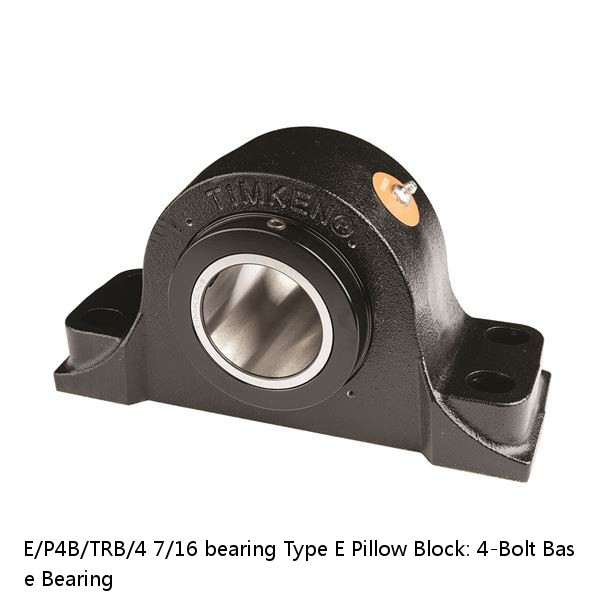

E/P4B/TRB/4 7/16 bearing | Type E Pillow Block: 4-Bolt Base Bearing
Price: | enquiry |
Model Number: | E/P4B/TRB/4 7/16 |
Weight: | 1.97 |
Bearing Number: | 1.63 |
Housing Construction: | 0.7 |
UPC Code: | 0.87 |
Shaft Size Type: | 91.000 lb |
Shaft Size | 4.4375 in |
Shaft Size Type | Imperial |
Weight | 91.000 lb |
UPC Code | 053893607634 |
Dimension B | 6-3/4 in |
Dimension L | 16-5/8 in |
Dimension A | 4-5/8 in |
Dimension J Min. | 13-5/16 in |
Dimension J Max. | 13-11/16 in |
Bolt Diameter | 3/4 in |
Dimension N | 15/16 in |
Dimension N1 | 1-1/8 in |
Dimension N2 | 2-1/2 in |
Dimension H1 | 2-3/4 in |
Dimension H2 | 9-3/8 in |
Dimension d1 | 6-47/64 in |
Dimension H | 4-3/4 in |
e | 0.53 |
X (if Fa/Fr ≤ e) | 0.87 |
Y (if Fa/Fr ≤ e) | 1.63 |
X (if Fa/Fr > e) | 0.7 |
Y (if Fa/Fr > e) | 1.97 |
K Factor | 1.13 |
C90 Dynamic Load Rating1 | 33000 lb |
C0 Static Load Rating | 188400 lb |
Fa-max Maximum Permissible Thrust Load2 | 6908 lb |
Fr-max Maximum Allowable Slip Fit Radial Load3 | 27000 lb |
Max. Speed4 | 1360 rpm |
Note | Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu |
