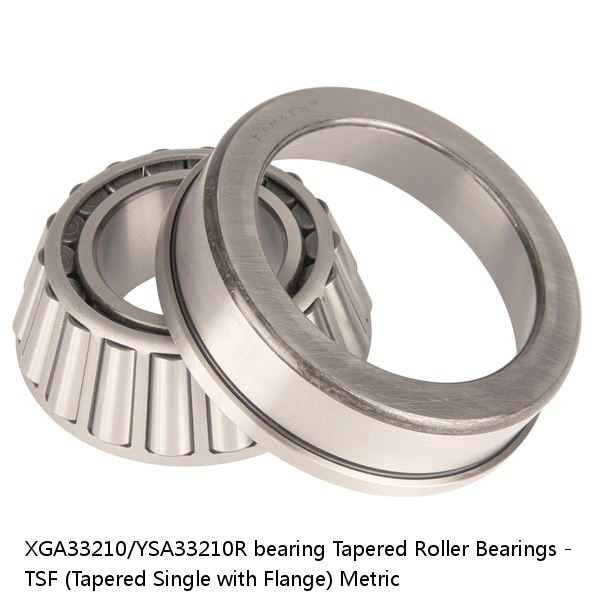

XGA33210/YSA33210R bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
XGA33210/YSA33210R PDF download| Price： | enquiry |
| Model Number： | XGA33210/YSA33210R |
| Series： | 1.45 |
| r - Cup Backface "To Clear" Radius2： | 32.000 mm1.2598 in |
| Design Units： | 10 mm0.3937 in |
| Db - Cup Backface Backing Diameter： | 33210 |
| da - Cone Frontface Backing Diameter： | 1.5 mm0.06 in |
| Series | 33210 |
| Cone Part Number | XGA33210 |
| Cup Part Number | YSA33210R |
| Design Units | METRIC |
| Bearing Weight | 1.2 Kg2.700 lb |
| Cage Type | Stamped Steel |
| d - Bore | 40 mm1.5748 in |
| D - Cup Outer Diameter | 95.000 mm3.7402 in |
| D1 - Flange Outer Diameter | 102.000 mm4.0157 in |
| B - Cone Width | 32.000 mm1.2598 in |
| C - Cup Width | 27 mm1.063 in |
| C1 - Cup Flange Width | 5.000 mm0.1969 in |
| T1 - Bearing Width | 32.000 mm1.2598 in |
| T - Bearing Width to Flange | 10 mm0.3937 in |
| R - Cone Backface "To Clear" Radius1 | 1.5 mm0.06 in |
| r - Cup Backface "To Clear" Radius2 | 1.5 mm0.06 in |
| da - Cone Frontface Backing Diameter | 54.10 mm2.13 in |
| db - Cone Backface Backing Diameter | 55.90 mm2.2 in |
| Da - Cup Frontface Backing Diameter | 89.90 mm3.54 in |
| Ab - Cage-Cone Frontface Clearance | 3 mm0.12 in |
| Aa - Cage-Cone Backface Clearance | 2.8 mm0.11 in |
| a - Effective Center Location3 | -8.6 mm-0.34 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 39900 N8960 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 154000 N34600 lbf |
| C0 - Static Radial Rating | 166000 N37300 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 28200 N6350 lbf |
| K - Factor7 | 1.41 |
| e - ISO Factor8 | 0.41 |
| Y - ISO Factor9 | 1.45 |
| G1 - Heat Generation Factor (Roller-Raceway)10 | 48.4 |
| G2 - Heat Generation Factor (Rib-Roller End) | 15.3 |
| Cg - Geometry Factor11 | 0.0957 |
