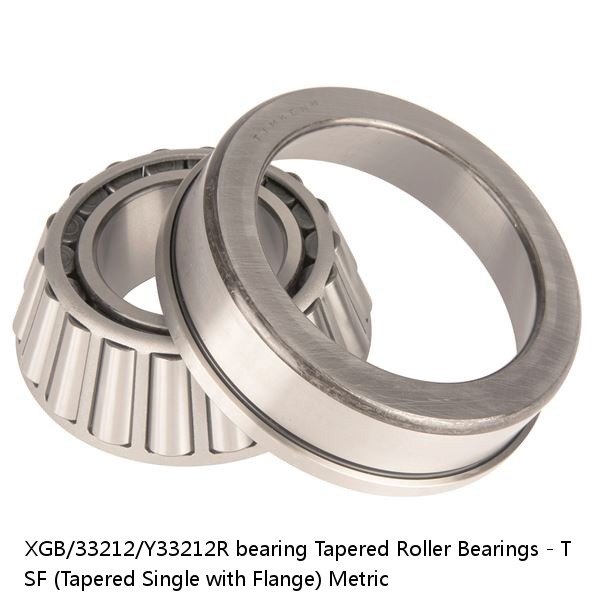

Tapered Roller Bearings - TSF (Tapered Single with Flange)

XGB/33212/Y33212R bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	XGB/33212/Y33212R
Series：	1.48
r - Cup Backface "To Clear" Radius²：	38.000 mm1.4961 in
Design Units：	16.000 mm0.6299 in
Db - Cup Backface Backing Diameter：	33212
da - Cone Frontface Backing Diameter：	1.5 mm0.06 in

Series	33212
Cone Part Number	XGB-33212
Cup Part Number	Y33212R
Design Units	METRIC
Bearing Weight	1.7 Kg3.8 lb
Cage Type	Stamped Steel
d - Bore	55.000 mm2.1654 in
D - Cup Outer Diameter	110.000 mm4.3307 in
D1 - Flange Outer Diameter	116.000 mm4.5669 in
B - Cone Width	38.000 mm1.4961 in
C - Cup Width	29.000 mm1.1417 in
C1 - Cup Flange Width	7.000 mm0.2756 in
T1 - Bearing Width	38.000 mm1.4961 in
T - Bearing Width to Flange	16.000 mm0.6299 in
R - Cone Backface "To Clear" Radius¹	0.800 mm0.03 in
r - Cup Backface "To Clear" Radius²	1.5 mm0.06 in
da - Cone Frontface Backing Diameter	68.10 mm2.68 in
db - Cone Backface Backing Diameter	71.10 mm2.8 in
Da - Cup Frontface Backing Diameter	106.93 mm4.25 in
Ab - Cage-Cone Frontface Clearance	3.3 mm0.13 in
Aa - Cage-Cone Backface Clearance	3.3 mm0.13 in
a - Effective Center Location³	-9.9 mm-0.39 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	60700 N13700 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	234000 N52700 lbf
C0 - Static Radial Rating	253000 N56800 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	42000 N9450 lbf
K - Factor⁷	1.44
e - ISO Factor⁸	0.4
Y - ISO Factor⁹	1.48
G1 - Heat Generation Factor (Roller-Raceway)¹⁰	76.2
G2 - Heat Generation Factor (Rib-Roller End)	18.1
Cg - Geometry Factor¹¹	0.0758
