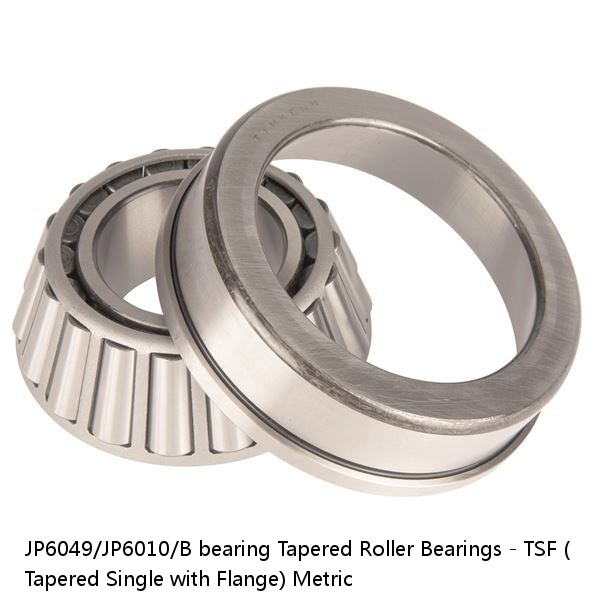

JP6049/JP6010/B bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
JP6049/JP6010/B PDF download| Price： | enquiry |
| Model Number： | JP6049/JP6010/B |
| Series： | 1.27 |
| r - Cup Backface "To Clear" Radius2： | 21.000 mm0.8268 in |
| Design Units： | 8.500 mm0.3346 in |
| Db - Cup Backface Backing Diameter： | JP6000 |
| da - Cone Frontface Backing Diameter： | 2 mm0.08 in |
| Series | JP6000 |
| Cone Part Number | JP6049 |
| Cup Part Number | JP6010-B |
| Design Units | METRIC |
| Bearing Weight | 0.6 Kg1.400 lb |
| Cage Type | Stamped Steel |
| d - Bore | 60.000 mm2.3622 in |
| D - Cup Outer Diameter | 100.000 mm3.9370 in |
| D1 - Flange Outer Diameter | 105.000 mm4.1339 in |
| B - Cone Width | 20.000 mm0.7874 in |
| C - Cup Width | 15.500 mm0.6102 in |
| C1 - Cup Flange Width | 3.000 mm0.1181 in |
| T1 - Bearing Width | 21.000 mm0.8268 in |
| T - Bearing Width to Flange | 8.500 mm0.3346 in |
| R - Cone Backface "To Clear" Radius1 | 2.000 mm0.080 in |
| r - Cup Backface "To Clear" Radius2 | 2 mm0.08 in |
| da - Cone Frontface Backing Diameter | 66 mm2.6 in |
| db - Cone Backface Backing Diameter | 69.10 mm2.72 in |
| Da - Cup Frontface Backing Diameter | 98.04 mm3.90 in |
| Ab - Cage-Cone Frontface Clearance | 3.6 mm0.14 in |
| Aa - Cage-Cone Backface Clearance | 0.8 mm0.03 in |
| a - Effective Center Location3 | 1.3 mm0.05 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 21400 N4810 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 82500 N18500 lbf |
| C0 - Static Radial Rating | 101000 N22800 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 17300 N3890 lbf |
| K - Factor7 | 1.24 |
| e - ISO Factor8 | 0.47 |
| Y - ISO Factor9 | 1.27 |
| G1 - Heat Generation Factor (Roller-Raceway)10 | 39.5 |
| G2 - Heat Generation Factor (Rib-Roller End) | 22.5 |
| Cg - Geometry Factor11 | 0.0922 |
