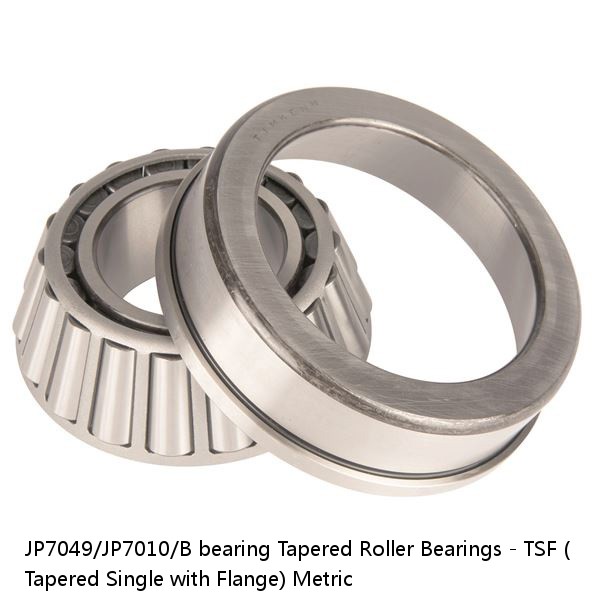

Tapered Roller Bearings - TSF (Tapered Single with Flange)

JP7049/JP7010/B bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	JP7049/JP7010/B
Series：	1.3
r - Cup Backface "To Clear" Radius²：	21.000 mm0.8268 in
Design Units：	8.500 mm0.3346 in
Db - Cup Backface Backing Diameter：	JP7000
da - Cone Frontface Backing Diameter：	2 mm0.08 in

Series	JP7000
Cone Part Number	JP7049
Cup Part Number	JP7010-B
Design Units	METRIC
Bearing Weight	0.70 Kg1.6 lb
Cage Type	Stamped Steel
d - Bore	70 mm2.7559 in
D - Cup Outer Diameter	110.000 mm4.3307 in
D1 - Flange Outer Diameter	116.000 mm4.5669 in
B - Cone Width	20.000 mm0.7874 in
C - Cup Width	15.500 mm0.6102 in
C1 - Cup Flange Width	3.000 mm0.1181 in
T1 - Bearing Width	21.000 mm0.8268 in
T - Bearing Width to Flange	8.500 mm0.3346 in
R - Cone Backface "To Clear" Radius¹	2.000 mm0.080 in
r - Cup Backface "To Clear" Radius²	2 mm0.08 in
da - Cone Frontface Backing Diameter	75.9 mm2.99 in
db - Cone Backface Backing Diameter	80 mm3.15 in
Da - Cup Frontface Backing Diameter	105.41 mm4.17 in
Ab - Cage-Cone Frontface Clearance	3.6 mm0.14 in
Aa - Cage-Cone Backface Clearance	0.8 mm0.03 in
a - Effective Center Location³	2.5 mm0.1 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	23700 N5340 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	91600 N20600 lbf
C0 - Static Radial Rating	112000 N25200 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	18700 N4210 lbf
K - Factor⁷	1.27
e - ISO Factor⁸	0.46
Y - ISO Factor⁹	1.3
G1 - Heat Generation Factor (Roller-Raceway)¹⁰	51.1
G2 - Heat Generation Factor (Rib-Roller End)	30.9
Cg - Geometry Factor¹¹	0.0995
