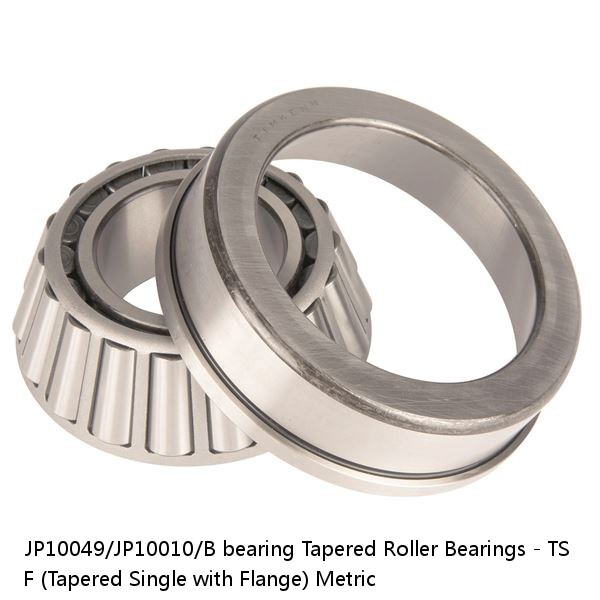

JP10049/JP10010/B bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
JP10049/JP10010/B PDF download| Price： | enquiry |
| Model Number： | JP10049/JP10010/B |
| Series： | 1.27 |
| r - Cup Backface "To Clear" Radius2： | 24.000 mm0.9449 in |
| Design Units： | 10.500 mm0.4134 in |
| Db - Cup Backface Backing Diameter： | JP10000 |
| da - Cone Frontface Backing Diameter： | 3 mm0.12 in |
| Series | JP10000 |
| Cone Part Number | JP10049 |
| Cup Part Number | JP10010-B |
| Design Units | METRIC |
| Bearing Weight | 1.2 Kg2.6 lb |
| Cage Type | Stamped Steel |
| d - Bore | 100 mm3.937 in |
| D - Cup Outer Diameter | 145.000 mm5.7087 in |
| D1 - Flange Outer Diameter | 152.000 mm5.9843 in |
| B - Cone Width | 22.500 mm0.8858 in |
| C - Cup Width | 17.500 mm0.6890 in |
| C1 - Cup Flange Width | 4.000 mm0.1575 in |
| T1 - Bearing Width | 24.000 mm0.9449 in |
| T - Bearing Width to Flange | 10.500 mm0.4134 in |
| R - Cone Backface "To Clear" Radius1 | 3 mm0.12 in |
| r - Cup Backface "To Clear" Radius2 | 3 mm0.12 in |
| da - Cone Frontface Backing Diameter | 105.90 mm4.17 in |
| db - Cone Backface Backing Diameter | 112 mm4.41 in |
| Da - Cup Frontface Backing Diameter | 143.00 mm5.63 in |
| Ab - Cage-Cone Frontface Clearance | 3.8 mm0.15 in |
| Aa - Cage-Cone Backface Clearance | 1.3 mm0.05 in |
| a - Effective Center Location3 | 6.1 mm0.24 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 32500 N7310 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 125000 N28200 lbf |
| C0 - Static Radial Rating | 172000 N38700 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 26300 N5920 lbf |
| K - Factor7 | 1.24 |
| e - ISO Factor8 | 0.47 |
| Y - ISO Factor9 | 1.27 |
| G1 - Heat Generation Factor (Roller-Raceway)10 | 104 |
| G2 - Heat Generation Factor (Rib-Roller End) | 40.9 |
| Cg - Geometry Factor11 | 0.126 |
