Tapered Roller Bearings - TSF (Tapered Single with Flange)
- Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
- JM624649/JM624610/B

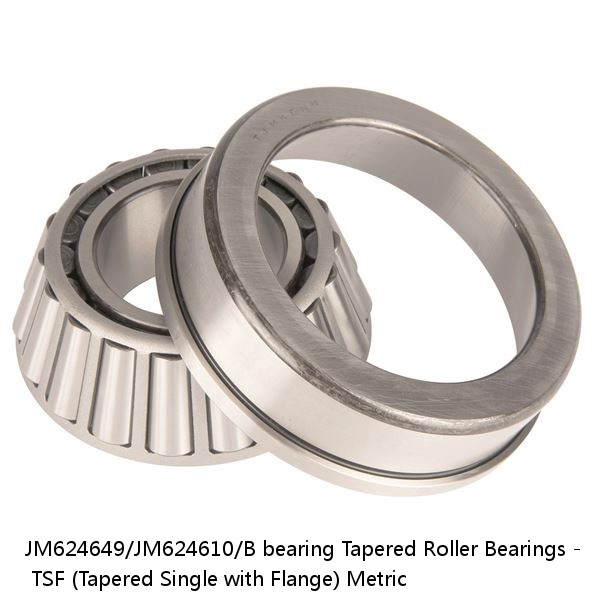

JM624649/JM624610/B bearing | Tapered Roller Bearings - TSF (Tapered Single with Flange) Metric
JM624649/JM624610/B PDF download| Price： | enquiry |
| Model Number： | JM624649/JM624610/B |
| Series： | 1.45 |
| r - Cup Backface "To Clear" Radius2： | 36.000 mm1.4173 in |
| Design Units： | 16.350 mm0.6437 in |
| Db - Cup Backface Backing Diameter： | M624600 |
| da - Cone Frontface Backing Diameter： | 1.5 mm0.06 in |
| Series | M624600 |
| Cone Part Number | JM624649 |
| Cup Part Number | JM624610-B |
| Design Units | METRIC |
| Bearing Weight | 3.0 Kg6.700 lb |
| Cage Type | Stamped Steel |
| d - Bore | 120 mm4.7244 in |
| D - Cup Outer Diameter | 180 mm7.0866 in |
| D1 - Flange Outer Diameter | 188.000 mm7.4016 in |
| B - Cone Width | 36 mm1.4173 in |
| C - Cup Width | 26.000 mm1.0236 in |
| C1 - Cup Flange Width | 6.580 mm0.2591 in |
| T1 - Bearing Width | 36.000 mm1.4173 in |
| T - Bearing Width to Flange | 16.350 mm0.6437 in |
| R - Cone Backface "To Clear" Radius1 | 3.600 mm0.14 in |
| r - Cup Backface "To Clear" Radius2 | 1.5 mm0.06 in |
| da - Cone Frontface Backing Diameter | 128 mm5.04 in |
| db - Cone Backface Backing Diameter | 134.90 mm5.31 in |
| Da - Cup Frontface Backing Diameter | 175.01 mm6.93 in |
| Ab - Cage-Cone Frontface Clearance | 3.3 mm0.13 in |
| Aa - Cage-Cone Backface Clearance | 3.3 mm0.13 in |
| a - Effective Center Location3 | 0 mm0 in |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 64000 N14400 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 247000 N55500 lbf |
| C0 - Static Radial Rating | 377000 N84700 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 45300 N10200 lbf |
| K - Factor7 | 1.41 |
| e - ISO Factor8 | 0.41 |
| Y - ISO Factor9 | 1.45 |
| G1 - Heat Generation Factor (Roller-Raceway)10 | 227 |
| G2 - Heat Generation Factor (Rib-Roller End) | 61.6 |
| Cg - Geometry Factor11 | 0.108 |
