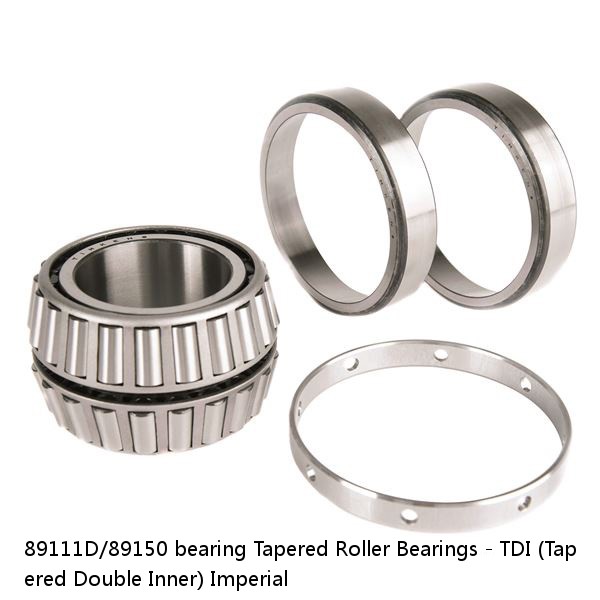

Tapered Roller Bearings - TDI (Tapered Double Inner)

89111D/89150 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	89111D/89150
Series：	4.3750 in111.125 mm
r - Cup Backface "To Clear" Radius²：	89000
Design Units：	0.130 in3.30 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	89000
Cone Part Number	89111D
Cup Part Number	89150
Design Units	Imperial
Bearing Weight	69.400 lb31.5 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	11.0070 in279.578 mm
D - Cup Outer Diameter	15.0000 in381.000 mm
B - Double Cone Width	3.5000 in88.900 mm
C - Cup Width	1.7500 in44.450 mm
T - Bearing Width across Cups	4.3750 in111.125 mm
R - Cone Frontface "To Clear" Radius¹	0.130 in3.30 mm
r - Cup Backface "To Clear" Radius²	0.250 in6.40 mm
da - Cone Frontface Backing Diameter	11.77 in299 mm
Db - Cup Backface Backing Diameter	13.70 in348.00 mm
Ab - Cage-Cone Frontface Clearance	0.09 in2.3 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	27000 lbf120000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	181000 lbf806000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	47000 lbf209000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	26900 lbf120000 N
K - Factor⁷	1
e - ISO Factor⁸	0.58
Y1 - ISO Factor⁹	1.16
Y2 - ISO Factor¹⁰	1.73
Cg - Geometry Factor¹¹	0.159
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
