Tapered Roller Bearings - TDI (Tapered Double Inner)

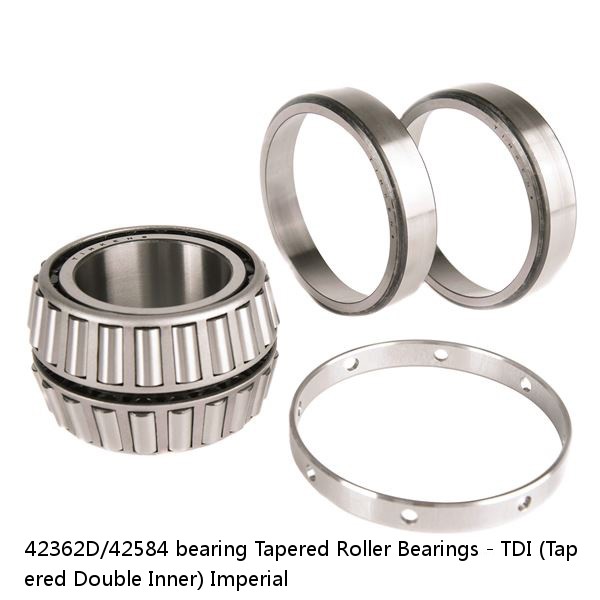

42362D/42584 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	150.00 USD/
Model Number：	42362D/42584
Series：	2.2499 in57.147 mm
r - Cup Backface "To Clear" Radius²：	42000
Design Units：	0.060 in1.50 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	42000
Cone Part Number	42362D
Cup Part Number	42584
Design Units	Imperial
Bearing Weight	8.2 lb3.70 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	3.6250 in92.075 mm
D - Cup Outer Diameter	5.8437 in148.430 mm
B - Double Cone Width	2.2812 in57.942 mm
C - Cup Width	0.8438 in21.433 mm
T - Bearing Width across Cups	2.2499 in57.147 mm
R - Cone Frontface "To Clear" Radius¹	0.060 in1.50 mm
r - Cup Backface "To Clear" Radius²	0.12 in3 mm
da - Cone Frontface Backing Diameter	4.06 in103.10 mm
Db - Cup Backface Backing Diameter	5.28 in134.10 mm
Ab - Cage-Cone Frontface Clearance	0.14 in3.6 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	9490 lbf42200 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	63800 lbf284000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	16500 lbf73500 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	8000 lbf35600 N
K - Factor⁷	1.19
e - ISO Factor⁸	0.49
Y1 - ISO Factor⁹	1.37
Y2 - ISO Factor¹⁰	2.04
Cg - Geometry Factor¹¹	0.139
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
