SYFWK 30 LTA Bearing | Loyal
SYFWK 30 LTA PDF download| SYFWK 30 LTA interchange SKF SYFWK 30 LTA | |
| SYFWK 30 LTA cross reference SKF SYFWK 30 LTA | |
| SYFWK 30 LTA Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | SYFWK 30 LTA |

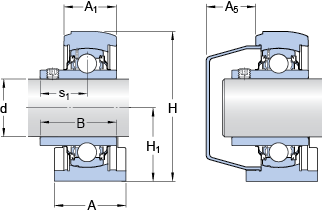

| J | 76.2 mm |
| B | 38.1 mm |
| L | 101 mm |
| H | 84 mm |
| d | 30 mm |
| A | 43 mm |
| Weight | 0.52 kg |
| Housing | SYFWK 506 L |
| Category | Bearings |
| Inventory | 0.0 |
| Size (mm) | 30x43x28 |
| Width (mm) | 28 |
| A1 | 28 mm |
| H1 | 42.9 mm |
| H1 | 42.9 mm |
| s1 | 22.2 mm |
| A5 | 27 mm |
| A1 | 28 mm |
| Product Group | M06110 |
| s1 | 22.2 mm |
| Limiting speed | 3800 r/min |
| Bearing number | SYFWK 30 LTA |
| Size thread - G | M10 |
| Housing material | Composite for food and beverage |
| Mass bearing unit | 0.52 kg |
| Manufacturer Name | SKF |
| Weight / Kilogram | 0 |
| Bore Diameter (mm) | 30 |
| Outer Diameter (mm) | 43 |
| Minimum Buy Quantity | N/A |
| Thread length G1 | 12 mm |
| Basic dynamic load rating C | 19.5 kN |
| Bearing - YAR 206-2RF/VE495 | YAR 2062RF/VE495 |
| Thread size attachement end G | M10 |
| Thread length - G1 | 12 mm |
| Basic dynamic load rating - C | 19.5 kN |
| Thread grub screw G2 | M6x0.75 |
| Fatigue load limit Pu | 0.475 kN |
| Calculation factor - f0 | 14 |
| Fatigue load limit - Pu | 0.475 kN |
| Hexagonal key size for grub screw N | 3 mm |
| Hexagonal key size for grub screw - H | 3 mm |
| Basic static load rating C0 | 11.2 kN |
| Basic static load rating - C0 | 11.2 kN |
| Recommended tightening torque for grub screw | 4 N·m |
