SYF 40 FM Bearing | Loyal
SYF 40 FM PDF download| SYF 40 FM interchange SKF SYF 40 FM | |
| SYF 40 FM cross reference SKF SYF 40 FM | |
| SYF 40 FM Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | SYF 40 FM |

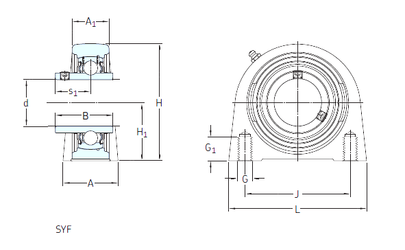

| H | 99 mm |
| L | 116 mm |
| d | 40 mm |
| A | 48 mm |
| B | 43,7 mm |
| J | 88,9 mm |
| s1 | 32,7 mm |
| A1 | 30 mm |
| G1 | 20 mm |
| H1 | 49,2 mm |
| Noun | Bearing |
| Bore | 1.575 Inch | 40 Millimeter |
| Seals | M Seal |
| Weight | 1,5 Kg |
| UNSPSC | 31171511 |
| Category | Pillow Block |
| Inventory | 0.0 |
| Thread (G) | M 12 |
| Weight / LBS | 3.42 |
| Inch - Metric | Metric |
| A1 | 30 mm |
| s1 | 33.2 mm |
| B1 | 43.7 mm |
| H1 | 49.2 mm |
| R1 | 3.5 mm |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Product Group | M06110 |
| GN | 1/4-28 SAE-LT |
| DN | 6.5 mm |
| RG | 1/4-28 UNF |
| Mounting Bolts | 12 Millimeter |
| Relubricatable | Yes |
| Rα | 45 ° |
| SWN | 7 mm |
| Other Features | Single Row | Narrow Inner Race | Short Base | Y Bearing |
| Limiting speed | 4800 r/min |
| Keyword String | Pillow Block |
| Bearing number | SYF 40 FM |
| Rolling Element | Ball Bearing |
| Mounting Method | Eccentric Collar |
| Housing material | Cast iron |
| Length Thru Bore | 1.72 Inch | 43.7 Millimeter |
| Long Description | 2 Bolt Tap Base Pillow Block; 40MM Bore; 49.2MM Base to Center Height; Eccentric Collar Mount; Ball Bearing; Relubricatable; Cast Iron; M Seal; Non-expansion |
| Housing Material | Cast Iron |
| Manufacturer URL | http://www.skf.com |
| Weight / Kilogram | 1.747 |
| Mass bearing unit | 1.65 kg |
| Manufacturer Name | SKF |
| Bore Diameter (mm) | 40 |
| Insert Part Number | YET 208 |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Minimum Buy Quantity | N/A |
| Base to Center Height | 1.937 Inch | 49.2 Millimeter |
| Housing Configuration | 1 Piece Solid |
| Harmonized Tariff Code | 8483.20.40.40 |
| Fatigue load limit (Pu) | 0,8 |
| Manufacturer Item Number | SYF 40 FM |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Basic dynamic load rating C | 30.7 kN |
| Thread length G1 | 20 mm |
| Actual Bolt Center to Center | 3.5 Inch | 90Millimeter |
| Basic static load rating (C0) | 19 kN |
| Basic dynamic load rating (C) | 30,7 kN |
| Nominal Bolt Center to Center | 3.5 Inch | 90 Millimeter |
| Thread grub screw G2 | M10x1 |
| Fatigue load limit Pu | 0.8 kN |
| Hexagonal key size for grub screw N | 5 mm |
| Housing thread for attachment bolts G | M12 |
| Basic static load rating C0 | 19 kN |
| Recommended tightening torque for grub screw | 16.5 N·m |
