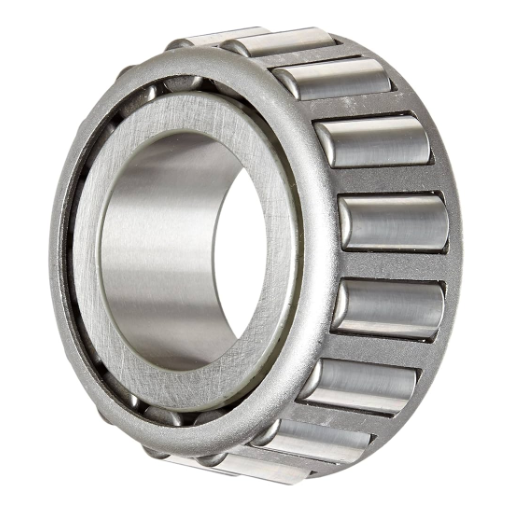

29685/29620 Bearing | Loyal
29685/29620 PDF download| 29685/29620 interchange KOYO 29685/29620 | |
| 29685/29620 cross reference KOYO 29685/29620 | |
| 29685/29620 Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | 29685/29620 |
| B | 25,4 mm |
| d | 73,025 mm |
| D | 112,712 mm |
| T | 25,4 mm |
| C | 19,05 mm |
| a | 26,2 mm |
| Db | 109 mm |
| Da | 101 mm |
| r min. | 3,6 mm |
| Weight | 0,872 Kg |
| db min | 80 mm |
| da min. | 86 mm |
| r2 min. | 3,2 mm |
| rb max. | 3,2 mm |
| ra max. | 3,6 mm |
| Size (mm) | 73.025x112.712x25.4 |
| Width (mm) | 25,4 |
| Bearing number | 29685/29620 |
| Bore Diameter (mm) | 73,025 |
| Outer Diameter (mm) | 112,712 |
| Calculation factor (e) | 0,49 |
| (Oil) Lubrication Speed | 4300 r/min |
| Calculation factor (Y0) | 0,68 |
| (Grease) Lubrication Speed | 3200 r/min |
| Basic dynamic load rating (C) | 97 kN |
| Basic static load rating (C0) | 155 kN |
UCTH209-26J-300 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH209-26J-300
SDI: B-1/4-28UNF
SD: 1 5/8
UCTH211-34J-300 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH211-34J-300
SDI: B-R1/8
SD: 2 1/8
UCHA215-48 with Setscrew(inch)
CNSORDERNO: A-R1/8
SDI: UCHA215-48
DVIS: 3.00000000
SD: Normal-duty(2)
ZKX11-32 Tapered bore (with adapter) inch - ZK series
DVIS: A-1/4-28UNF
CNSORDERNO: Medium-duty(X)
SDI: ZKX11-32
SD: 2.00000000
