C 2219 K + H 319 E Bearing | Loyal
C 2219 K + H 319 E PDF download| C 2219 K + H 319 E interchange SKF C 2219 K + H 319 E | |
| C 2219 K + H 319 E cross reference SKF C 2219 K + H 319 E | |
| C 2219 K + H 319 E Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | C 2219 K + H 319 E |

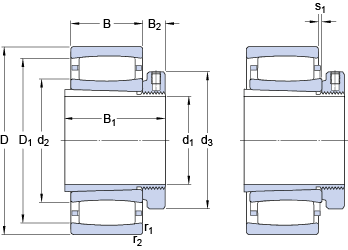

| B | 43 mm |
| D | 170 mm |
| Size (mm) | 170x85x68 |
| Width (mm) | 68 |
| d1 | 85 mm |
| B1 | 68 mm |
| d2 | 112 mm |
| D1 | 144 mm |
| s1 | 12.4 mm |
| Bearing number | C 2219 K + H 319 E |
| Limiting speed | 5300 r/min |
| Reference speed | 3800 r/min |
| Bore Diameter (mm) | 170 |
| Outer Diameter (mm) | 85 |
| Ca - min. | mm |
| ra - max. | 2 mm |
| da - max. | 124 mm |
| Ba - min. | 9 mm |
| Da - max. | 158 mm |
| Da - min. | 133 mm |
| db - min. | 102 mm |
| r1,2 - min. | 2.1 mm |
| Factor - k1 | 0.097 |
| Factor - k2 | 0.126 |
| Basic dynamic load rating - C | 325 kN |
| Fatigue load limit - Pu | 41.5 kN |
| Basic static load rating - C0 | 380 kN |
ZK212-34 Tapered bore (with adapter) inch - ZK series
DVIS: A-1/4-28UNF
CNSORDERNO: Normal-duty(2)
SDI: ZK212-34
SD: 2 1/8
UCTH211-34J-300 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH211-34J-300
SDI: B-R1/8
SD: 2 1/8
ZKX11-32 Tapered bore (with adapter) inch - ZK series
DVIS: A-1/4-28UNF
CNSORDERNO: Medium-duty(X)
SDI: ZKX11-32
SD: 2.00000000
