C 2215 KV + H 315 Bearing | Loyal
C 2215 KV + H 315 PDF download| C 2215 KV + H 315 interchange SKF C 2215 KV + H 315 | |
| C 2215 KV + H 315 cross reference SKF C 2215 KV + H 315 | |
| C 2215 KV + H 315 Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | C 2215 KV + H 315 |

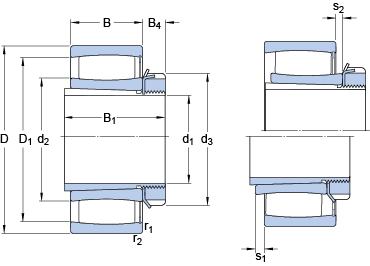

| D | 130 mm |
| B | 31 mm |
| Size (mm) | 130x65x55 |
| Width (mm) | 55 |
| B4 | 14.5 mm |
| d1 | 65 mm |
| s2 | 5.3 mm |
| s1 | 9.6 mm |
| B4 | 14.5 mm |
| d2 | 88.5 mm |
| D1 | 116 mm |
| d3 | 98 mm |
| B1 | 55 mm |
| d1 | 65 mm |
| B1 | 55 mm |
| d3 | 98 mm |
| Limiting speed | 2200 r/min |
| Bearing number | C 2215 KV + H 315 |
| Ba min. | 12 mm |
| Da max. | 121 mm |
| s1 max. | 9.6 mm |
| db min. | 80 mm |
| da max. | 107 mm |
| ra max. | 1.5 mm |
| Bore Diameter (mm) | 130 |
| s2 max. | 5.3 mm |
| Outer Diameter (mm) | 65 |
| Da - max. | 121 mm |
| Ba - min. | 12 mm |
| ra - max. | 1.5 mm |
| db - min. | 80 mm |
| r1,2 min. | 1.5 mm |
| da - max. | 107 mm |
| Mass bearing + sleeve | 2.4 kg |
| D1 ≈ | 116 mm |
| d2 ≈ | 88.5 mm |
| Factor - k2 | 0.127 |
| Factor - k1 | 0.099 |
| r1,2 - min. | 1.5 mm |
| Basic dynamic load rating C | 220 kN |
| Basic dynamic load rating - C | 220 kN |
| Fatigue load limit Pu | 28 kN |
| Misalignment factor k1 | 0.099 |
| Fatigue load limit - Pu | 28 kN |
| Basic static load rating C0 | 240 kN |
| Basic static load rating - C0 | 240 kN |
| Operating clearance factor k2 | 0.127 |
