FBSA 205/QBC Bearing | Loyal
FBSA 205/QBC PDF download| FBSA 205/QBC interchange SKF FBSA 205/QBC | |
| FBSA 205/QBC cross reference SKF FBSA 205/QBC | |
| FBSA 205/QBC Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | FBSA 205/QBC |

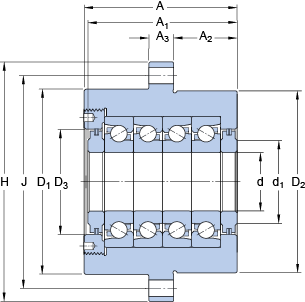

| H | 120 mm |
| d | 25 mm |
| A | 82 mm |
| Size (mm) | 25x120x82 |
| Width (mm) | 82 |
| A3 | 15 mm |
| d1 | 34 mm |
| A2 | 32 mm |
| A1 | 80.26 mm |
| D1 | 88 mm |
| D2 | 80 mm |
| D3 | 40 mm |
| D3 | 40 mm |
| D2 | 80 mm |
| D1 | 88 mm |
| d1 | 34 mm |
| A3 | 15 mm |
| A2 | 32 mm |
| A1 | 80.26 mm |
| Bearing number | FBSA 205/QBC |
| Preload class A | 3160 N |
| Preload class B | 6320 N |
| Bore Diameter (mm) | 25 |
| Mass cartridge unit | 3.5 kg |
| Outer Diameter (mm) | 120 |
| Basic dynamic load rating C | 36.5 kN |
| Basic dynamic load rating - C | 36.5 kN |
| Limiting speed, Preload class A | 4500 r/min |
| Fatigue load limit Pu | 3.86 kN |
| Frictional moment, Preload class B | 0.24 N·m |
| Frictional moment, Preload class A | 0.138 N·m |
| Limiting speed for oil lubrication | 2250 mm/min |
| Fatigue load limit - Pu | 3.9 kN |
| Attainable speed for preload class A | 4500 r/min |
| Attainable speed for preload class B | 2250 r/min |
| Frictional moment for preload class A | 0.138 N·m |
| Frictional moment for preload class B | 0.24 N·m |
| Static Axial rigidity, Preload class B | 1850 N/micron |
| Static Axial rigidity, Preload class A | 1450 N/micron |
| Basic static load rating C0 | 104 kN |
| Basic static load rating - C0 | 104 kN |
| Static axial stiffnes for preload class A | 1450 N/µm |
| Static axial stiffnes for preload class B | 1850 N/µm |
| Pitch diameter of attachement bolt holes J | 102 mm |
| Through hole diameter for attachment bolts N | 9.2 mm |
| Cartridge half diameter without flange J1 | 44 mm |
