3308 DNRCBM Bearing | Loyal
3308 DNRCBM PDF download| 3308 DNRCBM interchange SKF 3308 DNRCBM | |
| 3308 DNRCBM cross reference SKF 3308 DNRCBM | |
| 3308 DNRCBM Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | 3308 DNRCBM |

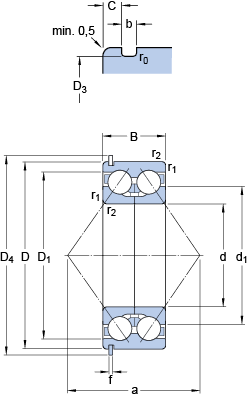

| C | 3.28 mm |
| a | 71 mm |
| f | 2.46 mm |
| d | 40 mm |
| D | 90 mm |
| B | 36.5 mm |
| b | 2.7 mm |
| Bore | 1.575 Inch | 40 Millimeter |
| Noun | Bearing |
| Width | 1.437 Inch | 36.5 Millimeter |
| UNSPSC | 31171531 |
| series: | 33 |
| Category | Angular Contact Ball Bearing |
| Size (mm) | 90x40x36.5 |
| Inventory | 0.0 |
| Enclosure | Open |
| Snap Ring | Yes |
| Width (mm) | 36,5 |
| maximum rpm: | 7000 RPM |
| Flush Ground | No |
| Weight / LBS | 2.557 |
| Mass bearing | 1.2 kg |
| Inch - Metric | Metric |
| Contact Angle | 40 Degree |
| Product Group | B00152 |
| Cage Material | Brass |
| closure type: | Open |
| D4 | 96.5 mm |
| D3 | 86.8 mm |
| D1 | 77.47 mm |
| d1 | 61.15 mm |
| D3 | 86.8 mm |
| D4 | 96.5 mm |
| bore diameter: | 40 mm |
| Keyword String | Angular Contact |
| cage material: | Brass |
| overall width: | 1.4375 in |
| Other Features | Split Inner Race | Normal Axial Internal Clearance |
| fillet radius: | 1.5 mm |
| contact angle: | 40 ° |
| Bearing number | 3308 DNRCBM |
| Limiting speed | 7000 r/min |
| finish/coating: | Uncoated |
| Reference speed | 6700 r/min |
| Precision Class | ABEC 3 | ISO P6 |
| Rolling Element | Ball Bearing |
| Outside Diameter | 3.543 Inch | 90 Millimeter |
| Manufacturer URL | http://www.skf.com |
| Long Description | 40MM Bore; 90MM Outside Diameter; 36.5MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 3 | ISO P6; No Filling Slot; Yes Snap Ring |
| Weight / Kilogram | 1.16 |
| Manufacturer Name | SKF |
| precision rating: | Not Rated |
| outer ring width: | 36.5 mm |
| outside diameter: | 90 mm |
| da min. | 49 mm |
| r0 max. | 0.6 mm |
| Bore Diameter (mm) | 90 |
| ra max. | 1.5 mm |
| Number of Bearings | 1 (Single) |
| Internal Clearance | CB |
| internal clearance: | C0 |
| Outer Diameter (mm) | 40 |
| ra - max. | 1.5 mm |
| Calculation factor X | 0.57 |
| Calculation factor e | 1.14 |
| r1,2 min. | 1.5 mm |
| Minimum Buy Quantity | N/A |
| r0 - max. | 0.6 mm |
| da - min. | 49 mm |
| D1 ≈ | 77.47 mm |
| d1 ≈ | 61.15 mm |
| row type & fill slot: | Double-Row Non-Fill Slot |
| Harmonized Tariff Code | 8482.10.50.28 |
| Calculation factor - e | 1.14 |
| Calculation factor - X | 0.57 |
| r1,2 - min. | 1.5 mm |
| Number of Rows of Balls | Double Row |
| Manufacturer Item Number | 3308 DNRCBM |
| Basic dynamic load rating C | 49.4 kN |
| radial static load capacity: | 41-1/2 kN |
| radial dynamic load capacity: | 49.4 kN |
| Basic dynamic load rating - C | 49.4 kN |
| Maximum Capacity / Filling Slot | No |
| Fatigue load limit Pu | 1.76 kN |
| Calculation factor kr | 0.095 |
| Calculation factor Y0 | 0.52 |
| Calculation factor Y1 | 0.55 |
| Calculation factor Y2 | 0.93 |
| Fatigue load limit - Pu | 1.8 kN |
| Calculation factor - Y1 | 0.55 |
| Calculation factor - Y2 | 0.93 |
| Calculation factor - Y0 | 0.52 |
| Calculation factor - kr | 0.095 |
| Basic static load rating C0 | 41.5 kN |
| Basic static load rating - C0 | 41.5 kN |
