FYTJ 30 KF Bearing | Loyal
FYTJ 30 KF PDF download| FYTJ 30 KF interchange SKF FYTJ 30 KF | |
| FYTJ 30 KF cross reference SKF FYTJ 30 KF | |
| FYTJ 30 KF Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | FYTJ 30 KF |

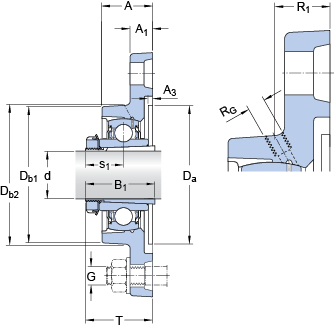

| J | 117 mm |
| N | 16 mm |
| d | 25 mm |
| A | 30.5 mm |
| T | 40.5 mm |
| L | 80 mm |
| H | 16 mm |
| Bearing | YSA 206-2FK |
| Category | Bearings |
| Size (mm) | 25x30.5x13.5 |
| Inventory | 0.0 |
| Width (mm) | 13,5 |
| GN | 1/4-28 SAE-LT |
| A3 | 3.2 mm |
| B1 | 38 mm |
| RG | 1/4-28 UNF |
| R1 | 19 mm |
| R1 | 19 mm |
| DN | 6.5 mm |
| Product Group | M06110 |
| Da | 76.2 mm |
| A1 | 13.5 mm |
| N4 | 2 mm |
| J7 | 12.5 mm |
| J6 | 99 mm |
| A1 | 13.5 mm |
| J6 | 99 mm |
| J7 | 12.5 mm |
| B1 | 38 mm |
| N4 | 2 mm |
| DN | 6.5 mm |
| Db1 | 77 mm |
| Db1 | 77 mm |
| Db2 | 80 mm |
| Rα | 45 ° |
| SWN | 7 mm |
| Bearing number | FYTJ 30 KF |
| Db2 | 80 mm |
| Limiting speed | 6300 r/min |
| SWN | 7 mm |
| Housing material | Cast iron |
| s1 - ? | 22.5 mm |
| Weight / Kilogram | 0 |
| Mass bearing unit | 0.9 kg |
| Manufacturer Name | SKF |
| Bore Diameter (mm) | 25 |
| Appropriate spanner | HN 5-6 |
| Da - H11 | 76.2 mm |
| A3 - H14 | 3.2 mm |
| Outer Diameter (mm) | 30,5 |
| Rα | 45 ° |
| Minimum Buy Quantity | N/A |
| s1 ≈ | 22.5 mm |
| RG - 1/4-28 UNF | 1/428 UNF |
| Basic dynamic load rating C | 19.5 kN |
| Basic dynamic load rating - C | 19.5 kN |
| GN - 1/4-28 SAE-LT | 1/428 SAELT |
| Fatigue load limit Pu | 0.475 kN |
| Fatigue load limit - Pu | 0.475 kN |
| Basic static load rating C0 | 11.2 kN |
| Basic static load rating - C0 | 11.2 kN |
| Recommended lock nut tightening angle α | 95 ° |
| Recommended diameter for attachment bolts, mm G | 14 mm |
| Recommended diameter for attachment bolts, inch G | 0.5625 in |
