FYT 1.11/16 TF/VA201 Bearing | Loyal
FYT 1.11/16 TF/VA201 PDF download| FYT 1.11/16 TF/VA201 interchange SKF FYT 1.11/16 TF/VA201 | |
| FYT 1.11/16 TF/VA201 cross reference SKF FYT 1.11/16 TF/VA201 | |
| FYT 1.11/16 TF/VA201 Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | FYT 1.11/16 TF/VA201 |

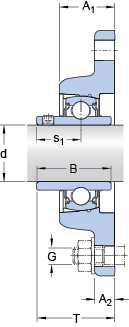

| N | 15.9 mm |
| d | 42.862 mm |
| J | 148.4 mm |
| H | 15.9 mm |
| L | 111 mm |
| T | 54.2 mm |
| B | 49.2 mm |
| Size (mm) | 39x42.862x14 |
| Width (mm) | 14 |
| s1 | 30.2 mm |
| A1 | 39 mm |
| A2 | 14 mm |
| s1 | 30.2 mm |
| A2 | 14 mm |
| A1 | 39 mm |
| Bearing number | FYT 1.11/16 TF/VA201 |
| Limiting speed | 70 r/min |
| Mass bearing unit | 1.95 kg |
| Bore Diameter (mm) | 39 |
| Outer Diameter (mm) | 42,862 |
| Limiting temperature - T | 250 °C |
| Basic dynamic load rating C | 33.2 kN |
| Limiting temperature T max. | 250 °C |
| Basic dynamic load rating - C | 33.2 kN |
| Grub (set) screw G2 | 5/16-24 UNF |
| Hexagonal key size for grub screw N | 3.969 mm |
| Hexagonal key size for grub screw - H | 3.969 mm |
| Basic static load rating C0 | 21.6 kN |
| Basic static load rating - C0 | 21.6 kN |
| Attachment bolts, recommended metric size G | 14 mm |
| Recommended tightening torque for grub screw | 6.5 N·m |
| Grub (set) screw - G2 - 5/16-24 UNF | 5/1624 UNF |
UCHA215-48 with Setscrew(inch)
CNSORDERNO: A-R1/8
SDI: UCHA215-48
DVIS: 3.00000000
SD: Normal-duty(2)
UCTH201-8J-150 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH201-8J-150
SDI: B-1/4-28UNF
SD: 1/2
UCTH207-23J-230 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH207-23J-230
SDI: B-1/4-28UNF
SD: 1 7/16
UCTH206-19J-150 with Setscrew(inch)
CNSORDERNO: Normal-duty(2)
TOGN: UCTH206-19J-150
SDI: B-1/4-28UNF
SD: 1 3/16
