FY 55 TF Bearing | Loyal
FY 55 TF PDF download| FY 55 TF interchange SKF FY 55 TF | |
| FY 55 TF cross reference SKF FY 55 TF | |
| FY 55 TF Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | FY 55 TF |

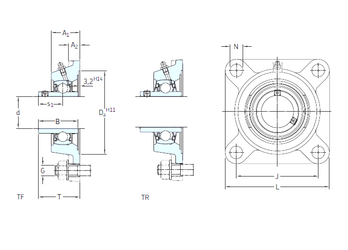

| T | 64,4 mm |
| d | 55 mm |
| B | 55,6 mm |
| G | 16 mm |
| J | 130 mm |
| L | 162 mm |
| N | 18 mm |
| A | 47.5 mm |
| Da | 150,8 mm |
| s1 | 33,4 mm |
| A1 | 47,5 mm |
| A2 | 16 mm |
| Noun | Bearing |
| Bore | 2.165 Inch | 55 Millimeter |
| Seals | M Seal |
| Weight | 3,6 Kg |
| UNSPSC | 31171501 |
| series: | FY |
| Category | Flange Block |
| end type: | Open |
| Inventory | 0.0 |
| bore type: | Round |
| Weight / LBS | 7.94 |
| Bolt Spacing | 5.118 Inch | 130 Millimeter |
| RG | 1/4-28 UNF |
| Housing Style | 4 Bolt Square Flange Block |
| N4 | 4 mm |
| J7 | 45 mm |
| J6 | 148 mm |
| GN | 1/4-28 SAE-LT |
| Inch - Metric | Metric |
| Da | 150.8 mm |
| DN | 6.5 mm |
| R1 | 32 mm |
| A1 | 16 mm |
| A3 | 3.2 mm |
| A5 | 34 mm |
| s1 | 33.4 mm |
| Product Group | M06110 |
| Db1 | 122 mm |
| Db2 | 134 mm |
| SWN | 7 mm |
| mounting type: | Four-Bolt Flange |
| bore diameter: | 55 mm |
| Bearing number | FY 55 TF |
| Limiting speed | 3600 r/min |
| Keyword String | Flanged |
| Mounting Bolts | 16 Millimeter |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Open End | Has Flinger | Y Bearing |
| Relubricatable | Yes |
| finish/coating: | Uncoated |
| Mounting Method | Set Screw |
| Rolling Element | Ball Bearing |
| expansion type: | Non-Expansion Bearing (Fixed) |
| locking device: | Set Screw |
| Long Description | 4 Bolt Square Flange Block; 55MM Bore; 184MM Bolt Circle; 130MM Bolt Spacing; 1 Piece Solid; Set Screw Mount; Cast Iron; Ball Bearing; 55.6MM Length Thru Bore; Relubricatable; M Seal Seals |
| Housing material | Cast iron |
| Housing Material | Cast Iron |
| Length Thru Bore | 2.189 Inch | 55.6 Millimeter |
| Manufacturer URL | http://www.skf.com |
| Mass bearing unit | 3.2 kg |
| lubrication type: | Lubrication Fitting |
| housing material: | Cast Iron |
| Manufacturer Name | SKF |
| Weight / Kilogram | 3.61 |
| Insert Part Number | YAR 211-2F |
| Bore Diameter (mm) | 55 |
| Pilot Configuration | No Pilot |
| replacement bearing: | YAR 211-2F |
| length through bore: | 64.4 mm |
| Minimum Buy Quantity | N/A |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Housing Configuration | 1 Piece Solid |
| Harmonized Tariff Code | 8483.20.40.40 |
| Fatigue load limit (Pu) | 1,25 |
| manufacturer upc number: | 7316577069177 |
| Manufacturer Item Number | FY 55 TF |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Number of Mounting Holes | 4 |
| overall length/diameter: | 162 mm |
| Expansion / Non-expansion | Non-expansion |
| Basic dynamic load rating C | 43.6 kN |
| radial static load capacity: | 29 kN |
| bolt center-to-center length: | 130 mm |
| Basic static load rating (C0) | 29 kN |
| Basic dynamic load rating (C) | 43,6 kN |
| radial dynamic load capacity: | 43.6 kN |
| Thread grub screw G2 | M10x1 |
| Fatigue load limit Pu | 1.25 kN |
| Nominal Bolt Circle Diameter Round | 7.2 Inch | 184 Millimeter |
| Hexagonal key size for grub screw N | 5 mm |
| Basic static load rating C0 | 29 kN |
| Recommended tightening torque for grub screw | 16.5 N·m |
| Recommended diameter for attachment bolts, mm G | 16 mm |
| Recommended diameter for attachment bolts, inch G | 0.625 in |
