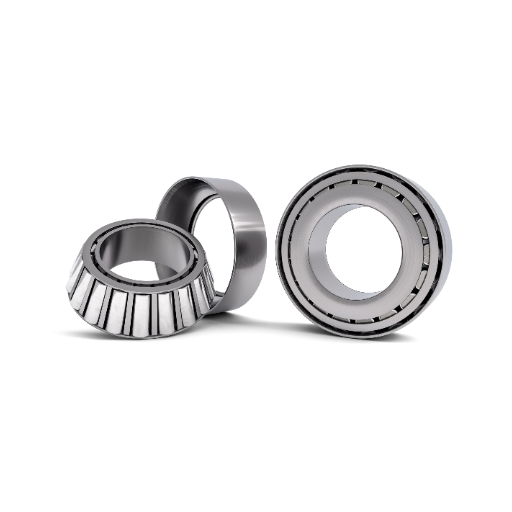

32044JR Bearing | Loyal
32044JR PDF download| 32044JR interchange KOYO 32044JR | |
| 32044JR cross reference KOYO 32044JR | |
| 32044JR Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | 32044JR |
| e | 0.43 |
| C | 57 mm |
| a | 72,8 mm |
| d | 220 mm |
| D | 340 mm |
| T | 76 mm |
| B | 76 mm |
| Db | 326 mm |
| Cr | 1120 |
| Cu | 175 |
| Y0 | 0.77 |
| Y1 | 1.39 |
| C0r | 1620 |
| a(mm) | 72.8 |
| r min. | 4 mm |
| da max | 243 mm |
| Da min | 300 mm |
| r(min) | 4 |
| Weight | 25,2 Kg |
| Sb(min) | 19 |
| r1(min) | 3 |
| Da(max) | 326 |
| Da(min) | 300 |
| Db(min) | 326 |
| Sa(min) | 12 |
| da(min) | 238 |
| ra(max) | 3 |
| db(max) | 243 |
| rb max. | 2,5 mm |
| ra max. | 3 mm |
| Db min. | 326 mm |
| rb(max) | 2.5 |
| db max. | 243 mm |
| Da max. | 326 mm |
| da min. | 238 mm |
| r2 min. | 3 mm |
| r1 min. | 3 mm |
| Oil lub. | 1300 |
| Category | Bearings |
| Size (mm) | 220x340x76 |
| Inventory | 0.0 |
| Width (mm) | 76 |
| Bearing No. | 32044JR |
| Grease lub. | 940 |
| Product Group | B04334 |
| Bearing number | 32044JR |
| (Refer.)Mass(kg) | 25.2 |
| Weight / Kilogram | 26.568 |
| Manufacturer Name | KOYO |
| Bore Diameter (mm) | 220 |
| Outer Diameter (mm) | 340 |
| Minimum Buy Quantity | N/A |
| Calculation factor (e) | 0,43 |
| (Oil) Lubrication Speed | 1300 r/min |
| Calculation factor (Y0) | 0,77 |
| (Grease) Lubrication Speed | 940 r/min |
| Basic static load rating (C0) | 1620 kN |
| Basic dynamic load rating (C) | 894 kN |
