Deep Groove Ball Bearings
- Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
- 6207/2RS/NR/C3

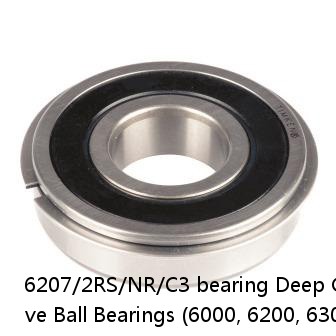

6207/2RS/NR/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6207/2RS/NR/C3 PDF download| Price： | enquiry |
| Model Number： | 6207/2RS/NR/C3 |
| Weight： | 0.29 Kg |
| Radius Rs min： | 1.100 mm |
| Outside Ring Width B： | 17.000 mm |
| Outside Diameter D： | 72.000 mm |
| Features： | 14000 rpm |
| Clearance | C3 |
| Bore Size d | 35 mm |
| Features | Contact Seals With Snap Ring |
| Bearing Type | Standard DGBB |
| Weight | 0.29 Kg |
| Outside Diameter D | 72.000 mm |
| Outside Ring Width B | 17.000 mm |
| Radius Rs min | 1.100 mm |
| Snap Ring Diameter D2 max | 78.600 mm |
| Snap Ring Width f max | 1.700 mm |
| Cr - Dynamic Load Rating | 25.7 kN |
| C0r - Static Load Rating | 15.3 kN |
| Grease Reference Speed | 10000 rpm |
| Oil Reference Speed | 14000 rpm |
| No. | Weight | Radius Rs min | Outside Ring Width B | Outside Diameter D | Features | Cr - Dynamic Load Rating |
|---|---|---|---|---|---|---|
| H3188 | 104.00 Kg | Tr440x5 | MS 3188 | HM3188 | 307.00 mm | 560 mm |
| TRB-2435 | 0.015 / 0.034 | 1 1/2 | 38.10 / 1.500 | 38.02 / 1.497 | 38.10 / 1.500 | 1.52 / 0.060 |
| K42x47x27 | K42x47x27 | 0.047 | 9500 | 6500 | 42 | 47 |
| NA4900A.2RS | 10 | 0.3 | NA4900A.2RS | 14000 | 14 | 22 |
| SAL 6 E | 8.150 | 3.400 | 22.000 | 6.000 | 4.500 | 6.000 |
| 24148EJW33W45AC2 | 1.76 | 2.68 | 1.8 | 24148CJW33W45AC2 | 650 | 610 |
| 22328EAKD1 | 22328EAKD1 | 33.700 | 19.0 | 140 | 4.0 | 1900 |
| 240/530E | 530 | 6.0 | 417.00 | 550 | 450 | 780 |
| BA 1910Z | 30.162 | BA 1910Z | 32.5 | 30.162 | 38.100 | 15000 |
| 619/7/ZZ | 0.0050 Kg | 0.300 mm | 5.000 mm | 17.0000 mm | 47000 rpm | 40000 rpm |
ORS 6207-2RSNR Deep Groove Ball Bearing
ORS 6207-2RSNR Deep Groove Ball Bearing - Double Sealed Snap Ring 35mm Bore, 72mm OD. ... in ABEC 1 tolerance (ISO Normal) and with C3 radial clearance.
Part Number 6207-2RS-NR-C3, Deep Groove Ball Bearings (6000 ...
6207-2RS-NR-C3 ... Timken's deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways ...
timken 6207-2rs-nr-c3 - Single Row Ball Bearings
Bearing, Ball, Single Row; 35MM Bore; 72MM Outside Diameter; 17MM Outer Race Width; 2 Seals; Ball Bearing; ABEC 1 | ISO P0; No Filling Slot; Yes Snap Ring; ...
Deep Groove Ball Bearing, 35mmBore72mm - Zoro Tools
Ors #6207 2RS NR C3 G93 Specifications · Item: Radial Ball Bearing · Bearing Type: Sealed with Snap Ring · Bore Dia.: 35mm · Cage Material: 52100 Steel · Outside Dia ...
6207NRC3 Bearing Wth Snapring & Groove Premium ...
This item: 6207NRC3 Bearing Wth Snapring & Groove Premium Brand Koyo 35x72x17mm 6207 NR C3 · Timken 6205-2RSC3 6205-2RS Deep Groove Ball Bearing 25x52x15mm ...
Deep groove ball bearing 6207-2rs-nr-c3-skf - 35x72x17 mm
Deep Groove Ball Bearing 6207-2RS-NR-C3-SKF SKF, Inner diam. 35 mm, Outer diam. 72 mm, Width 17 mm, material N/A.
