Type E Tapered Roller Bearing Housed Units

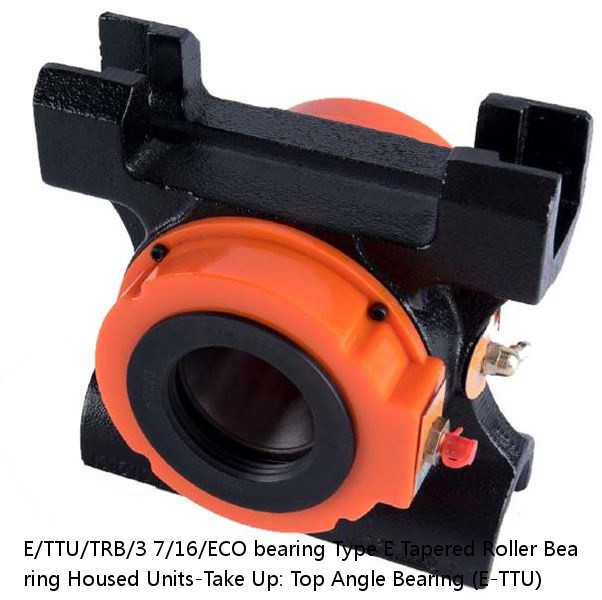

E/TTU/TRB/3 7/16/ECO bearing | Type E Tapered Roller Bearing Housed Units-Take Up: Top Angle Bearing (E-TTU)

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/TTU/TRB/3 7/16/ECO
Weight：	2.07
Bearing Number：	1.71
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	42 lb

Shaft Size	3.4375 in
Shaft Size Type	Imperial
Weight	42 lb
UPC Code	0883450508322
Type E Open Cover Number	EUDR-3 7/16
Dimension B	5 in
Dimension H	9-5/8 in
Dimension H₁	8-5/16 in
Dimension H2	4.05 in
Dimension d₁	5-17/32 in
Dimension A	2-1/2 in
Dimension A₁	2-1/2 in
Housing Width	3-1/2 in
Dimension L	9-1/2 in
Dimension L₁	9 in
Dimension L2	4.46 in
Dimension A_c	4.8 in
Dimension d₂	6.7 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating¹	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	16000 lb
Max. Speed⁴	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
