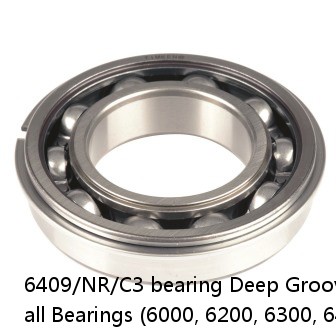

6409/NR/C3 bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6409/NR/C3 PDF download| Price： | enquiry |
| Model Number： | 6409/NR/C3 |
| Weight： | 1.55 Kg |
| Radius Rs min： | 2.000 mm |
| Outside Ring Width B： | 29.000 mm |
| Outside Diameter D： | 120.000 mm |
| Features： | 10000 rpm |
| Clearance | C3 |
| Bore Size d | 45 mm |
| Features | Snap Ring |
| Bearing Type | Standard DGBB |
| Weight | 1.55 Kg |
| Outside Diameter D | 120.000 mm |
| Outside Ring Width B | 29.000 mm |
| Radius Rs min | 2.000 mm |
| Snap Ring Diameter D2 max | 129.700 mm |
| Snap Ring Width f max | 2.820 mm |
| Cr - Dynamic Load Rating | 77.2 kN |
| C0r - Static Load Rating | 45.2 kN |
| Grease Reference Speed | 7200 rpm |
| Oil Reference Speed | 10000 rpm |
