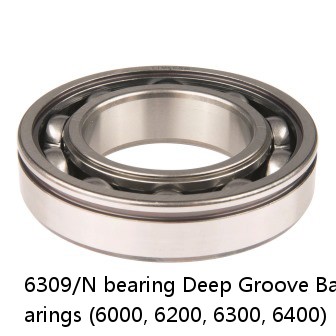

6309/N bearing | Deep Groove Ball Bearings (6000, 6200, 6300, 6400)
6309/N PDF download| Price： | enquiry |
| Model Number： | 6309/N |
| Weight： | 0.84 Kg |
| Radius Rs min： | 1.500 mm |
| Outside Ring Width B： | 25.000 mm |
| Outside Diameter D： | 100.000 mm |
| Features： | 11000 rpm |
| Clearance | C0 (Normal) |
| Bore Size d | 45 mm |
| Features | O.D. Groove |
| Bearing Type | Standard DGBB |
| Weight | 0.84 Kg |
| Outside Diameter D | 100.000 mm |
| Outside Ring Width B | 25.000 mm |
| Radius Rs min | 1.500 mm |
| Cr - Dynamic Load Rating | 48.8 kN |
| C0r - Static Load Rating | 29.3 kN |
| Grease Reference Speed | 7800 rpm |
| Oil Reference Speed | 11000 rpm |
| No. | Weight | Radius Rs min | Outside Ring Width B | Outside Diameter D | Features | Cr - Dynamic Load Rating |
|---|---|---|---|---|---|---|
| NU216E | 80 | 2.0 | 2.0 | 1.660 | 4800 | 4000 |
| SNL 516-613 + 21313 K + HA 313 | SNL 516-613 | 95 | 177 | SNL 516-613 + 21313 K + HA 313 | 120 | 21313 K |
| 7316CDT | 80 | 1.10 | 2.1 | 7316C | 3.55 | 6 900 |
| HA3130 | 5.80 Kg | MB30 | KM30 | 111.00 mm | M150x2 | 195 mm |
| 1700280 | 431.8000 | 469.900 | 1700280 | R | HDS7 | 15.875 |
| 7208ADT | Standard | 40 | 1.0 | 1.1 | 7208ADT | 10000 |
| UCTH209-26J-300 | Normal-duty(2) | UCTH209-26J-300 | B-1/4-28UNF | 1 5/8 | - | - |
| ZKFL311-32 | A-R1/8 | ZKFL311-32 | Heavy-duty(3) | - | 2.00000000 | - |
| CUKP312CE_H | CUKP312CE_H | - | - | - | - | - |
| EBC 3210-3 RRNone+102L C7 | 102.000 | EBC 3210-3 | - | - | - | - |
